Home > Products > Lab Furnace > Vertical Tube Furnace
Products
Lab Furnace

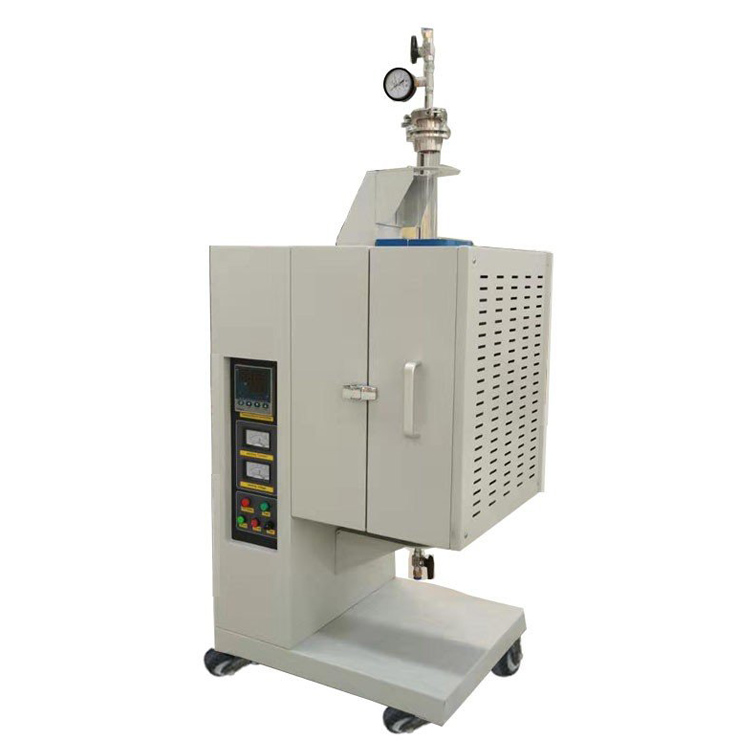

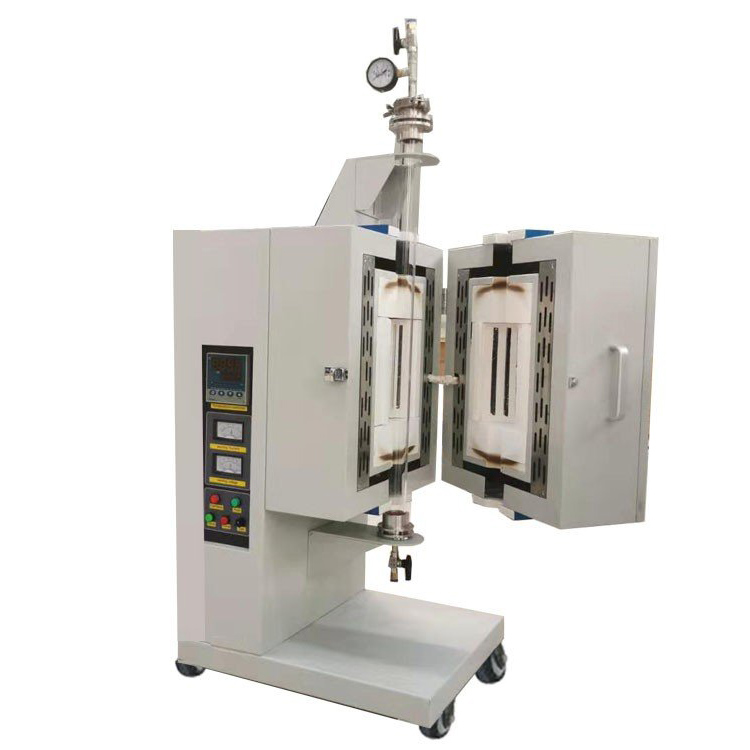

Vertical Tube Furnace

According to different temperature, furnace tube is high pure quartz or alumina, assembled with vacuum sealing flange. The furnace can heat or quench samples fast under vacuum or flowing inert gas situation. It is an idea furnace for making quenching test and temperature measurement.

ASK FOR A QUOTE ONLINE CONTACT
Share:
Vacuum Furnace
Electrochemical Equipment
Consumables
Lab Furnace
Industrial Furnace
WE CAN HELP YOU !
Our professional team can solve various lifting equipment problems for you!
CONTACT US
Features:

Features:

    • Max temperature: 1200℃ (HRE Fe-Cr-Al-Mo wire)

    1400℃ (Sic Heater)

    1600℃ (MoSi2 Heater)

    • 30 segments programmable and auto control
    • Furnace structure, double layer steel dual cooling fan
    • Stainless steel double sealing flange
    • Over-temperature protection function, automatic power-off when the temperature exceeds the allowable set value
    • Heating rate ≦20℃/min
    • Temperature accuracy±1 oC
    • Max vacuum -0.1MPa
    • Configuration molecular pump, Vacuum 7×10-4Pa
Standard Spares:
  • Standard Spares:
    • Thermocouple 1pc; Furnace tube 1pc; Vacuum pump 1 set
    • Vacuum flange 1 set; Vacuum gauge 1pc
Technical Parameters:

Standard Specification:

Model Heating Zone

(Dia*L)

 Power Max Working Temperature Thermocouple Furnace Tube Material Heating Elements
DM-12NVT-40/300 40x300mm 3 KW 1100oC K type Quartz tube Fe-Cr-Al-Mo wire
DM-12NVT-60/300 60x300mm 3 KW
DM-12NVT-80/300 80x300mm 5 KW
DM-12NVT-100/300 100x300mm 5 KW
DM-12NVT-120/300 120x300mm 6 KW
DM-12NVT-40/450 40x450mm 3 KW
DM-12NVT-60/450 60x450mm 3 KW
DM-12NVT-80/450 80x450mm 5 KW
DM-12NVT-100/450 100x450mm 5 KW
DM-12NVT-120/450 120x450mm 6 KW
Model Heating Zone

(Dia*L)

 Power Max Working Temperature Thermocouple Furnace Tube Material Heating Elements
DM-14SVT-40/300 40x300mm 4 KW 1300oC S type Alumina tube Sic Heater
DM-14SVT-60/300 60x300mm 4 KW
DM-14SVT-80/300 80x300mm 4 KW
DM-14SVT-100/300 100x300mm 6 KW
DM-14SVT-120/300 120x300mm 6 KW
DM-14SVT-40/450 40x450mm 4 KW
DM-14SVT-60/450 60x450mm 4 KW
DM-14SVT-80/450 80x450mm 4KW
DM-14SVT-100/450 100x450mm 6 KW
DM-14SVT-120/450 120x450mm 6 KW
Model Heating Zone

(Dia*L)

 Power Max Working Temperature Thermocouple Furnace Tube Material Heating Elements
DM-16MVT-40/300 40x300mm 4 KW 1500oC B type Alumina tube MoSi2 Heater
DM-16MVT-60/300 60x300mm 4 KW
DM-16MVT-80/300 80x300mm 4 KW
DM-16MVT-100/300 100x300mm 6 KW
DM-16MVT-120/300 120x300mm 6 KW
DM-16MVT-40/450 40x450mm 5 KW
DM-16MVT-60/450 60x450mm 5 KW
DM-16MVT-80/450 80x450mm 5 KW
DM-16MVT-100/450 100x450mm 9 KW
DM-16MVT-120/450 120x450mm 9 KW

Can Be Customized
