Vacuum Tube Furnace

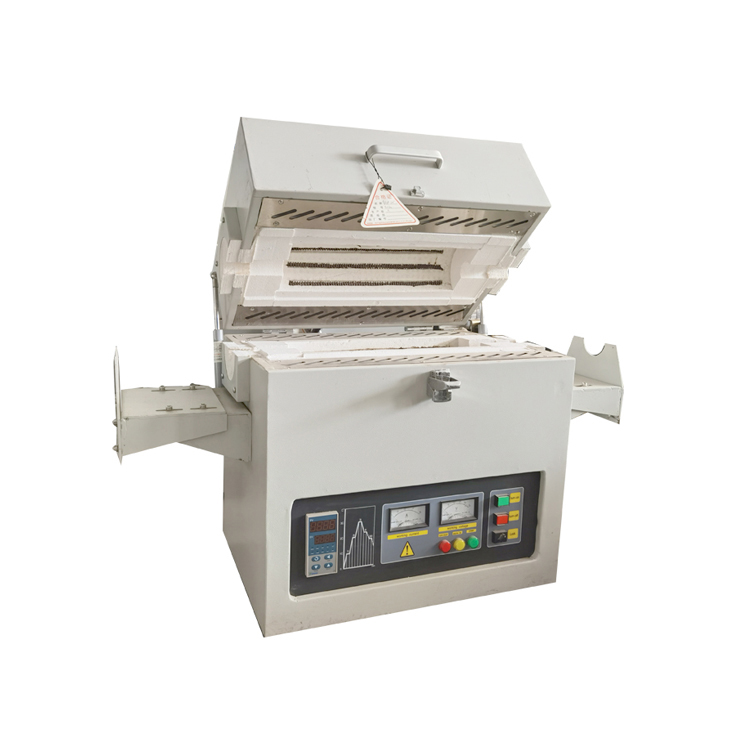

Dming vacuum tube furnace used high pure alumina or quartz tube as furnace chamber. Working range is from 300℃ to 1600℃. Precise and advanced auto temperature controller, high temperature accuracy, easy operation, excellent heat-insulation effect, symmetrical temperature uniform, Dming tube furnace widely used in the labs of university and Research Institutions, also used in factory for production.

Share:
Features:

Features:

  • Max temperature: 1200℃ (HRE Fe-Cr-Al-Mo wire)

1400℃ (SiC Heater)

1600℃ (MoSi2 Heater)

  • 50 segments programmable and auto control
  • Furnace structure, double layer steel dual cooling fan, surface temperature below 50℃
  • 304 stainless steel vacuum sealing flange
  • Adjustable flange support structure at both ends to extend furnace tube life
  • Over-temperature protection function, automatic power-off when the temperature exceeds the allowable set value
  • Safety protection: Automatically power off when the furnace body leaks
  • Heating rate ≦20℃/min
  • Temperature accuracy  ±1 ℃
  • Max vacuum -0.1MPa
  • Configuration molecular pump, Vacuum 7×10-4Pa

Standard Spares:

  • Tube plugs 2pcs; Furnace tube 1 pc; Vacuum pump 1 set
  • Vacuum sealing flange 1 set; Vacuum gauge 1pc

Optional Spares:

  • Vacuum system (Rotary vane vacuum pump, Diffusion pump, Molecular pump)
  •  Atmosphere system (Float flow meter, Mass flow meter)
  •  Quick release flange, Three-way flange
  •  7 inch HD touch screen
Technical Parameters:

Standard Specification:

Model Heating Zone

(Dia*L)

Power Max Working Temperature Thermocouple Furnace Tube Material Heating Elements
DM-12NT-40/300 40x300mm 3 KW 1200oC K type Quartz tube Fe-Cr-Al-Mo wire
DM-12NT-60/300 60x300mm 3 KW
DM-12NT-80/300 80x300mm 5 KW
DM-12NT-100/300 100x300mm 5 KW
DM-12NT-120/300 120x300mm 6 KW
DM-12NT-40/450 40x450mm 3 KW
DM-12NT-60/450 60x450mm 3 KW
DM-12NT-80/450 80x450mm 5 KW
DM-12NT-100/450 100x450mm 5 KW
DM-12NT-120/450 120x450mm 6 KW
Model Heating Zone

(Dia*L)

Power Max Working Temperature Thermocouple Furnace Tube Material Heating Elements
DM-14ST-40/300 40x300mm 4 KW 1400oC S type Alumina tube Sic Heater
DM-14ST-60/300 60x300mm 4 KW
DM-14ST-80/300 80x300mm 4 KW
DM-14ST-100/300 100x300mm 6 KW
DM-14ST-120/300 120x300mm 6 KW
DM-14ST-40/450 40x450mm 4 KW
DM-14ST-60/450 60x450mm 4 KW
DM-14ST-80/450 80x450mm 4 KW
DM-14ST-100/450 100x450mm 6 KW
DM-14ST-120/450 120x450mm 6 KW
Model Heating Zone

(Dia*L)

Power Max Working Temperature Thermocouple Furnace Tube Material Heating Elements
DM-16MT-40/300 40x300mm 4 KW 1600oC B type Alumina tube MoSi2 Heater
DM-16MT-60/300 60x300mm 4 KW
DM-16MT-80/300 80x300mm 4 KW
DM-16MT-100/300 100x300mm 6 KW
DM-16MT-120/300 120x300mm 6 KW
DM-16MT-40/450 40x450mm 5 KW
DM-16MT-60/450 60x450mm 5 KW
DM-16MT-80/450 80x450mm 5 KW
DM-16MT-100/450 100x450mm 7 KW
DM-16MT-120/450 120x450mm 7 KW

Can Be Customized
