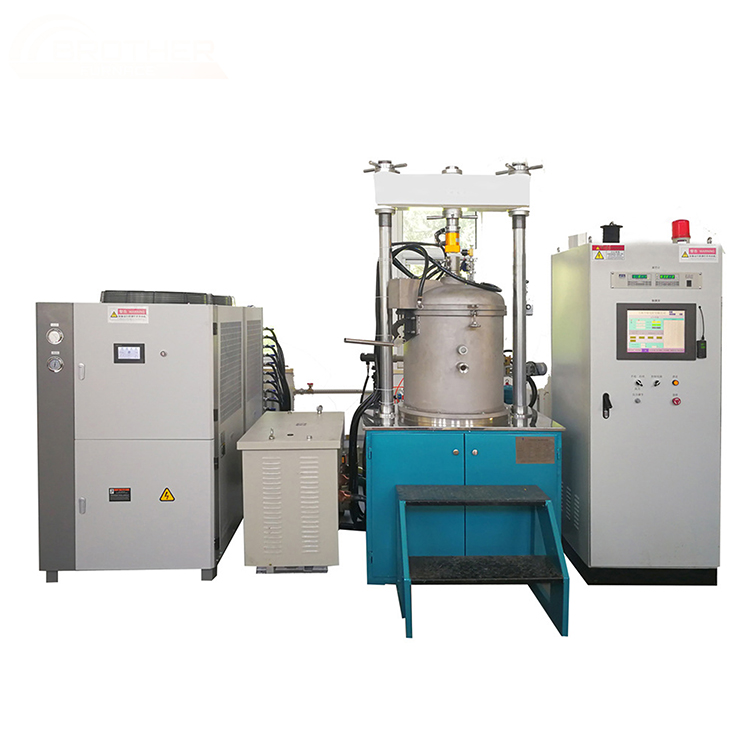

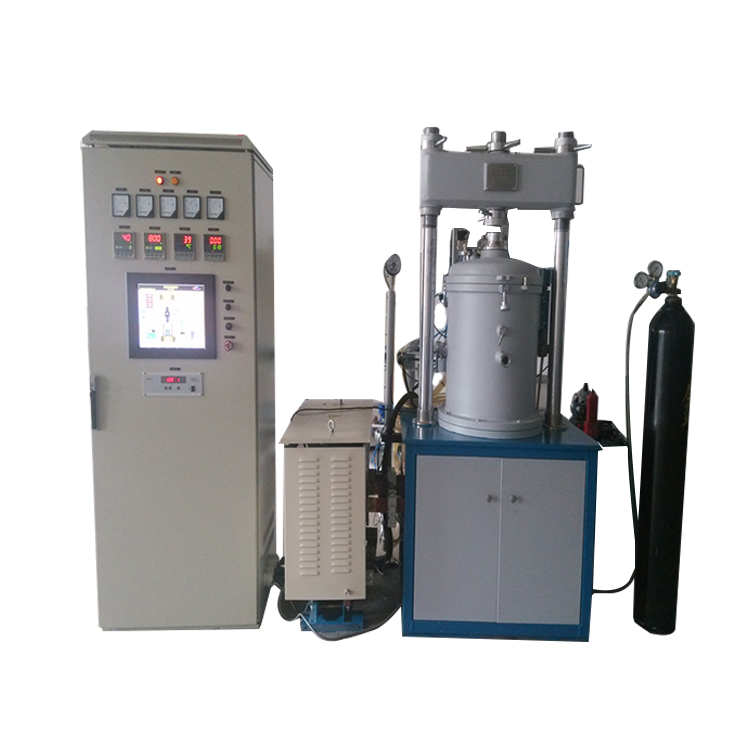

Vacuum Hot Press Furnace

The vacuum hot press furnace mainly used for the high temperature sintering and hot press treatment, such as inorganic material, hard alloy, function ceramic, metallurgy powder. The material density could be increased under vacuum condition or protective atmosphere.

ASK FOR A QUOTE ONLINE CONTACT

Vacuum Furnace

Electrochemical Equipment

Consumables

Lab Furnace

Industrial Furnace

WE CAN HELP YOU !

Our professional team can solve various lifting equipment problems for you!

Feature：

Feature:

The heating element could be selected according to the difference of hot press temperature and vacuum level. The resistance module is suitable below 1200℃and graphite heater is suitable over 1200℃.
The press range is adjustable below 5 tons, so that it’s can be used for sample sintering and hot press testing to avoid resource waste.
Ranging by grating ruler with high accuracy to 0.02mm.
All the action could be controlled by PLC system, including temperature control, press adjustment, temperature auto tracking. All the furnace running monitoring and data could be displayed and record on touch screen, such as temperature, vacuum level, displacement. The data curve could check in real time.
W-Re thermocouple at low temperature and infrared thermocouple for high temperature. The W-Re thermocouple will be auto quit at high temperature.

Technical Parameters

Model	Working Size(Dia*H)	Max. temp	Press	Displacement	Power	Ultimate vacuum
DM-RYL-10	Ф160x160mm	2000℃	20T	100mm	25KW	6×10^-3Pa
DM-RYL-20	Ф200x200mm	2000℃	20T	150mm	60KW	6×10^-3Pa
DM-RYL-30	Ф300x300mm	2000℃	20T	200mm	120KW	6×10^-3Pa
DM-RYLA-10	Ф160x160mm	1100℃	20T	100mm	8KW	6×10^-3Pa
DM-RYLA-20	Ф200x200mm	1100℃	20T	150mm	12KW	6×10^-3Pa
DM-RYLA-30	Ф300x300mm	1100℃	20T	200mm	20KW	6×10^-3Pa
Can Be Customized
