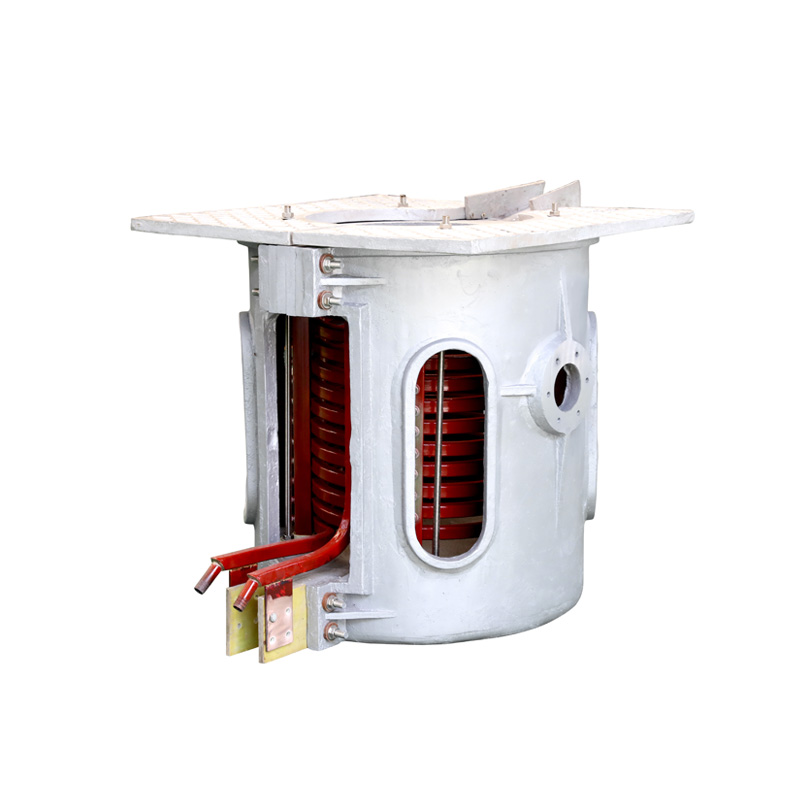

Induction melting furnace is a furnace that converts three-phase power frequency current into single-phase intermediate frequency current, and then induces metal eddy current loss through electromagnetic field induction, and finally achieves the purpose of heating and melting. It can be used for smelting, heating and heat preservation of ferrous or non-ferrous metals and alloy materials such as iron and steel, copper and aluminum. Mainly used in metal casting, steelmaking and other industries.Induction melting furnace is divided into steel shell furnace and aluminum shell furnace.
Feature：
High melting efficiency, energy saving and power saving
Low furnace shell temperature, less smoke and dust
Simple control process, reliable smelting operation;
Uniform metal composition;

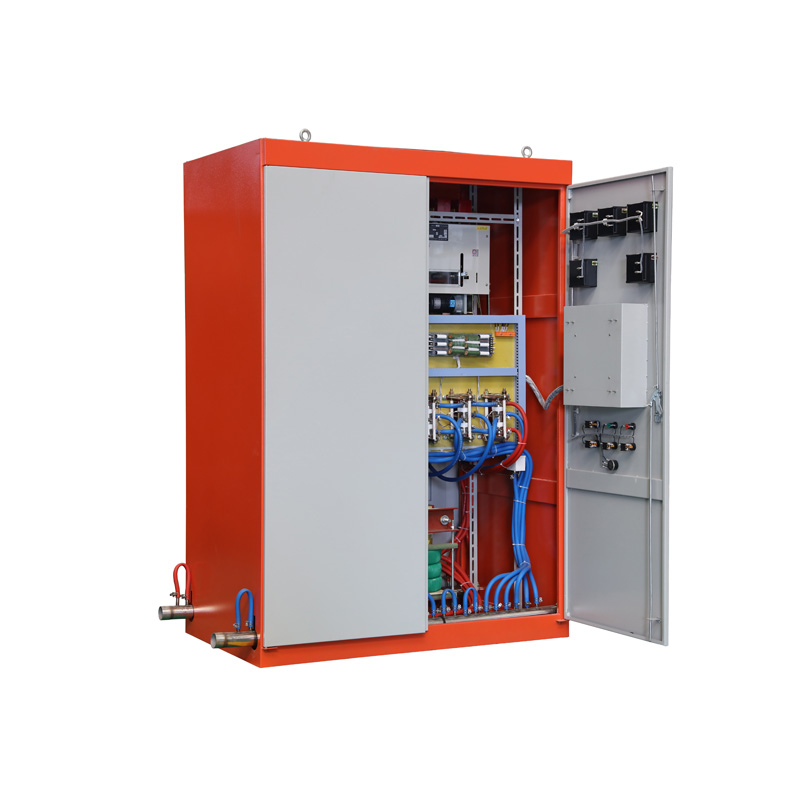

| Model | Capacity | Power Control Cabinet | Furnace Body | ||||
| Power
(KW) |
Dimension
(mm) |
Frequency
(Hz) |
Weight
(T) |
Dimension
（mm） |
Weight
(T) |
||
| DM-IMF0.1 | 100kg | 100 | 1000*800*1700 | 2000 | 0.5 | ф630 | 0.3 |
| DM-IMF0.25 | 250kg | 200 | 1300*850*2000 | 2000 | 0.8 | ф730 | 0.7 |
| DM-IMF0.35 | 350kg | 350 | 1300*850*2000 | 1500 | 0.8 | ф730 | 0.9 |
| DM-IMF0.5 | 500kg | 400 | 1300*850*2000 | 1500 | 1 | ф1100 | 1 |
| DM-IMF0.75 | 750kg | 500 | 1300*850*2000 | 1000 | 1 | ф1100 | 1.2 |
| DM-IMF1 | 1000kg | 850 | 1300*850*2000 | 1000 | 1.2 | ф1180 | 1.3 |
| DM-IMF1.5 | 1500kg | 1000 | 1300*850*2000 | 1000 | 1.2 | ф1250 | 1.8 |
| DM-IMF2 | 2000kg | 1500 | 2400*1000*2000 | 800 | 1.6 | ф1350 | 2 |
| DM-IMF3 | 3000kg | 2000 | 2400*1000*2000 | 800 | 1.6 | ф1400 | 2.5 |
| DM-IMF5 | 5000kg | 3000 | 2400*1000*2000 | 800 | 2.5 | ф1650 | 4.5 |
| DM-IMF10 | 10T | 6000 | 3500*1000*2200 | 500 | 3 | ф2000 | 23 |
| DM-IMF15 | 15T | 10000 | 4000*1200*2200 | 300 | 3.5 | ф2200 | 32 |
Can Be Customized
