Vacuum Furnace

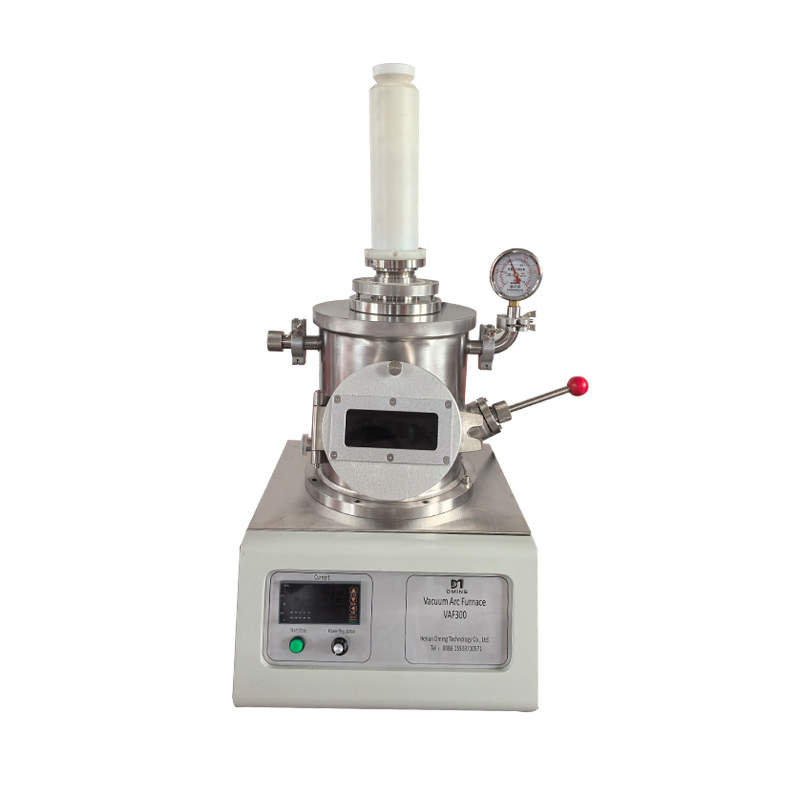

Vacuum Arc Furnace

The non-consumable vacuum electric arc furnace is a product carefully developed by our company according to the experimental requirements of scientific research institutions. It is mainly used for smelting high melting point metals/alloys. It is widely used in high melting point refractory metals and metal alloys. It is suitable for vacuum in universities and research institutes.

Scientific research and small batch preparation of new smelting materials

ASK FOR A QUOTE ONLINE CONTACT

Vacuum Furnace

Electrochemical Equipment

Consumables

Lab Furnace

Industrial Furnace

WE CAN HELP YOU !

Our professional team can solve various lifting equipment problems for you!

Equipment Feature：

Equipment Feature：

Furnace body material is stainless steel, vacuum chamber.
Equipped with a large-diameter observation window, which can observe the smelting situation in the furnace in real time
The smelting temperature is high, the temperature can be above 3500℃
High vacuum design, the vacuum degree can reach 5×10^-4Pa and above
With turning device to overcome the uneven melting of materials on one side
With vacuum suction casting casting station
Various specifications can be customized:
The sample can be powder, wire, chip, drill cuttings, granular, strip, ring, sand, etc.
Equipment efficiency: the heating and remelting time of most metal materials is one minute or less

Configuration Instructions:

Configuration Instructions:
Vacuum configuration: mechanical pump system 5Pa;mechanical pump +

diffusion pump system 5×10^-3Pa ;mechanical pump + molecular pump

system 5.0*10^-4pa

Power configuration: 4~80KW according to melting capacity
Capacity configuration: 5g-200g
Temperature range: standard 0-3000℃
Crucible station: 3~7 stations, non-standard customizable
Configurable vacuum suction casting, optional electromagnetic stirring function
