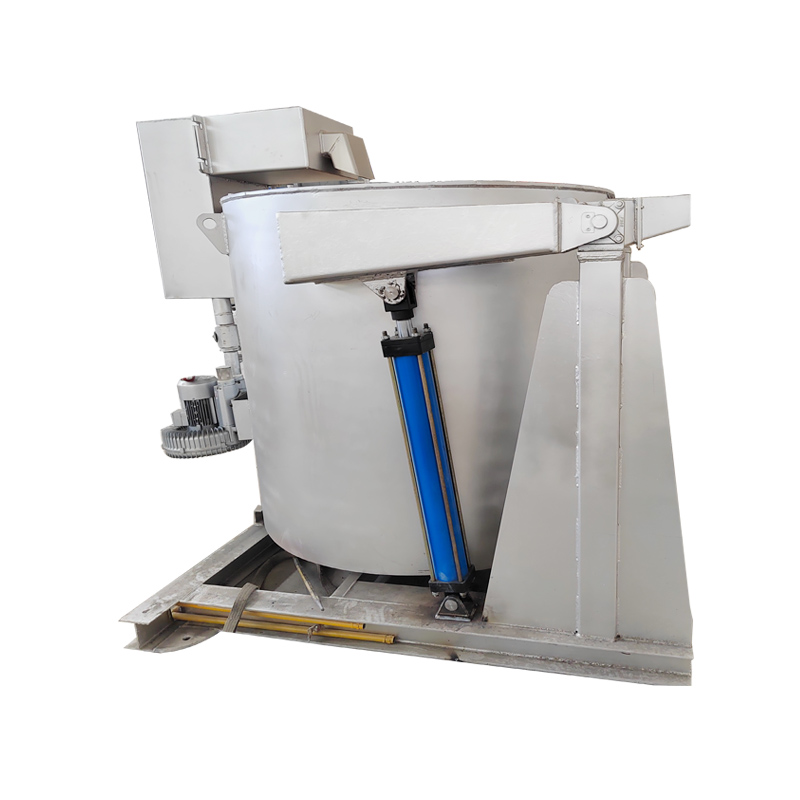

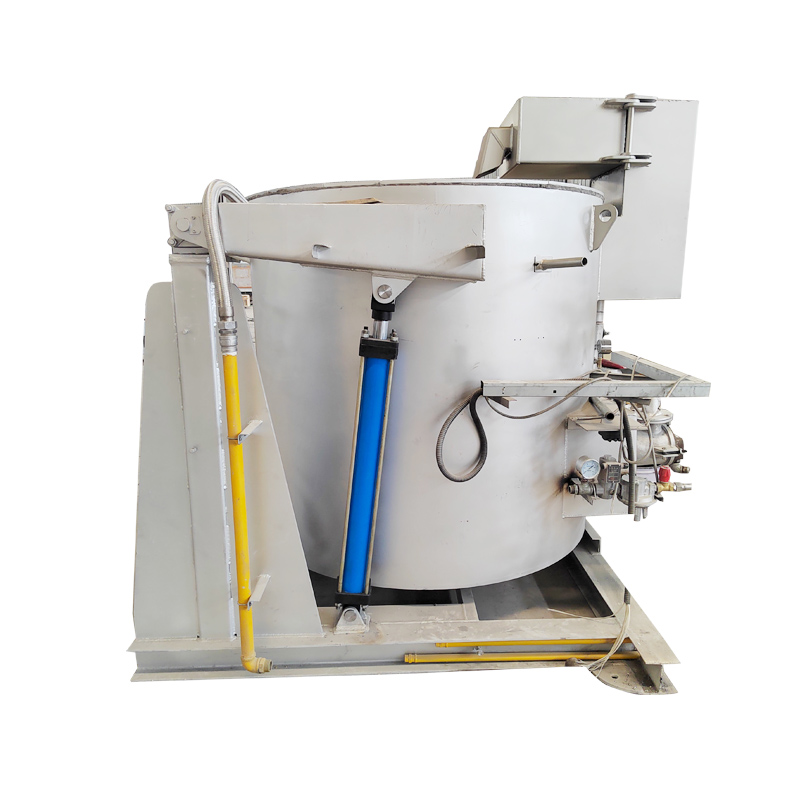

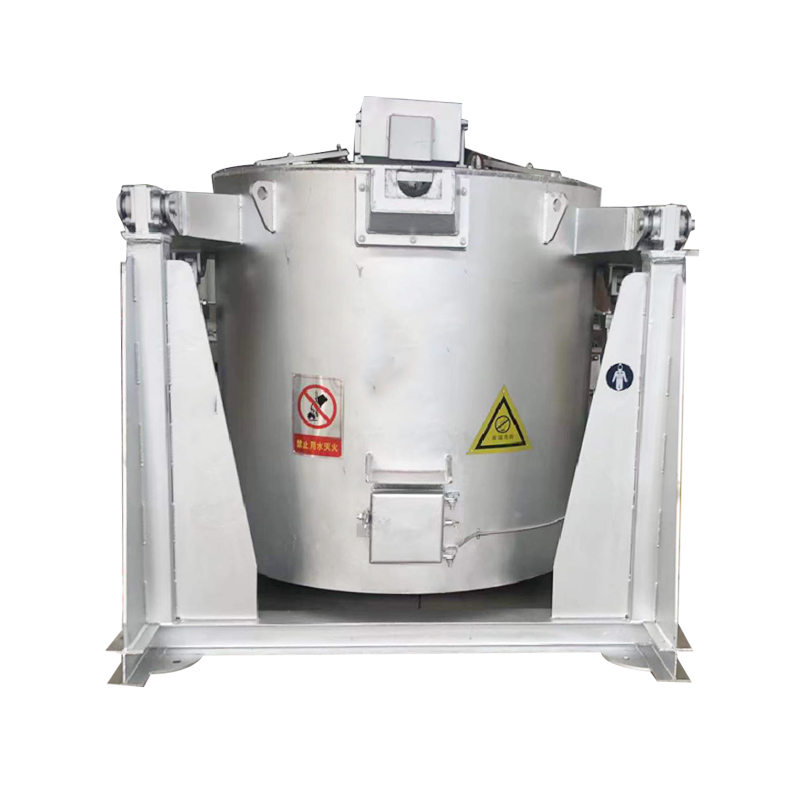

The DM-GMF series crucible melting furnace is a periodic melting furnace, mainly used to melt aluminum scrap, and the fuel is natural gas or liquefied petroleum gas. After the raw materials are melted, the aluminum liquid can be poured into the mold or aluminum transfer bag through the hydraulic pouring function.
| No. | Name | Parameter |
| 1 | Crucible | Brand: Vesuvius or Golden Elephant
Capacity: 1000KG/800KG/600KG/350KG |
| 2 | Power | 400,000 kcal |
| 3 | Use Heat Source | Natural Gas |
| 4 | Design Operating temperature | ≦900℃ (furnace atmosphere) |
| 5 | Equipment Furnace Table Color | High temperature silver paint (standard configuration); can be produced according to customer provided samples |
| 6 | Equipment Furnace Surface Temperature | Temperature rise 35°C (except hot spots)
Hot spots: burner part, chimney part, soup outlet part, crucible mouth part |
| 7 | Temperature Control Method | Dual temperature control + PID control
Aluminum liquid temperature control + furnace temperature control |
| 8 | Soup Making Method | Hydraulic dumping (used with aluminum water transfer bag) |
| 9 | Melting Speed | ≤2.5h when hot furnace
≤2.5h when hot furnace |
| 10 | Aluminum Liquid temperature control accuracy | ≤±5℃ |
Can Be Customized
