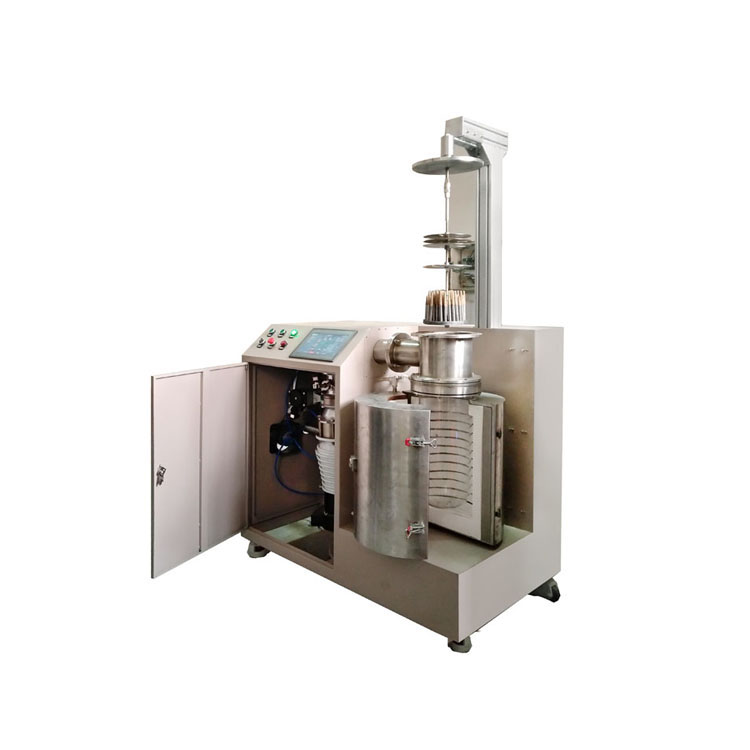

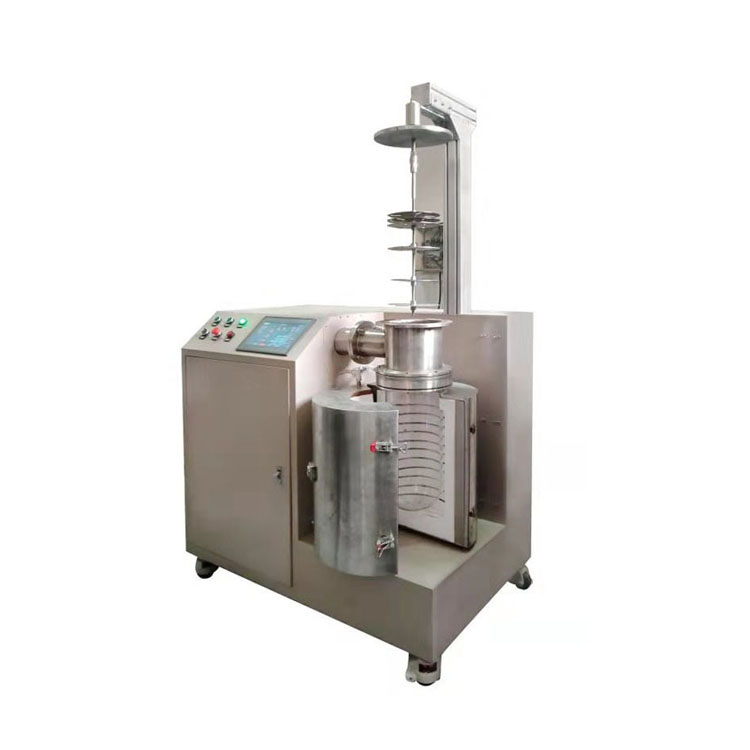

Special Brazing Furnace for CNC Tools

DM-200BF Series Brazing furnace is widely used in the welding of various kinds of small size superhard materials, mainly used for cemented carbide tools (PCD tools, PCBN tools, CVD tools,

CBN tools, engraving tools, etc.), drilling bit, stainless steel

Brazing, single crystal welding, porcelain metal Brazing, heterotropic metal components, complex sheet: sandwich components, honeycomb structure, etc.

ASK FOR A QUOTE ONLINE CONTACT

Vacuum Furnace

Electrochemical Equipment

Consumables

Lab Furnace

Industrial Furnace

WE CAN HELP YOU !

Our professional team can solve various lifting equipment problems for you!

Features:

Features：

PLC full control, can also switch manual control,
inch HDtouch screen, 50 programming, 30

program storage, simple operation, continuous

production;

Temperature curve and vacuum curve can be derived;
Welding workpiece surface clean and nice and no oxidation;Double stainless steel platform, so that the welding materials placed in order;
Using ring and bottom heating, high welding strength, 2-3 times of ordinary high frequency welding;
High production capacity, single welding quantity can reach more than 600 pieces (take CNGA1204 as an example);
Provide process and technical support with 20 years of experience to ensure quality products are produced.
Vacuum system consists of direct pump and diffusion pump, working vacuum up to 10-3pa

Optional accessories

Optional accessories: Chiller; Vacuum oven; Ultrasonic cleaning machine; Flux solder paste
Brazing process: Ultrasonic cleaning →daub solder paste→vacuum drying→vacuumBrazing.

Technical Parameter

Technical Parameters：

Model	Max Temp.	Chamber size(Dia*H)mm	Dimension(LWH)mm	Power(kW)
DM-200BF	1200℃	200×400	1235x1150x750	8
