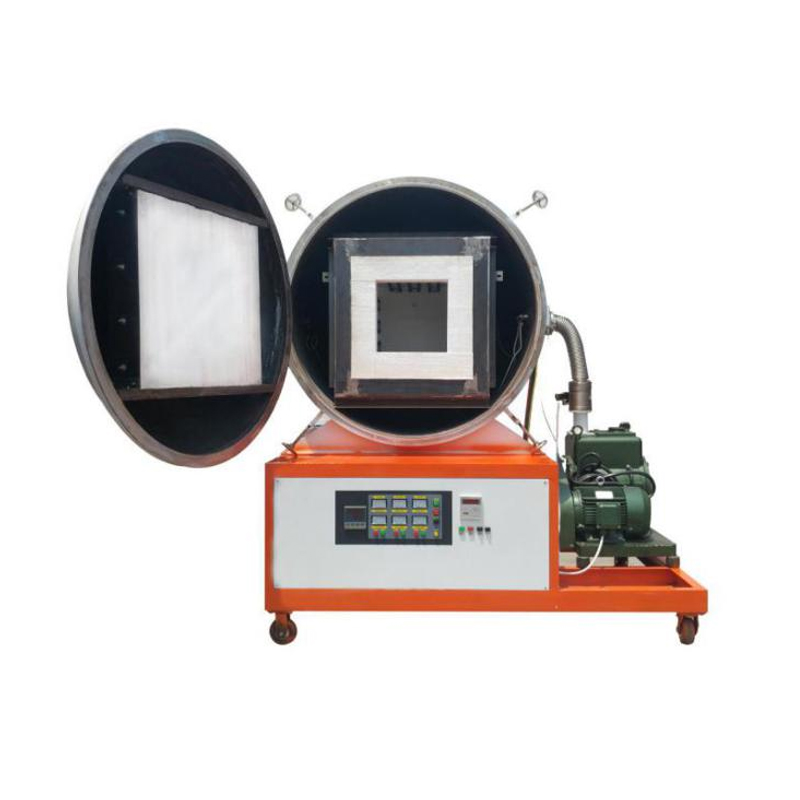

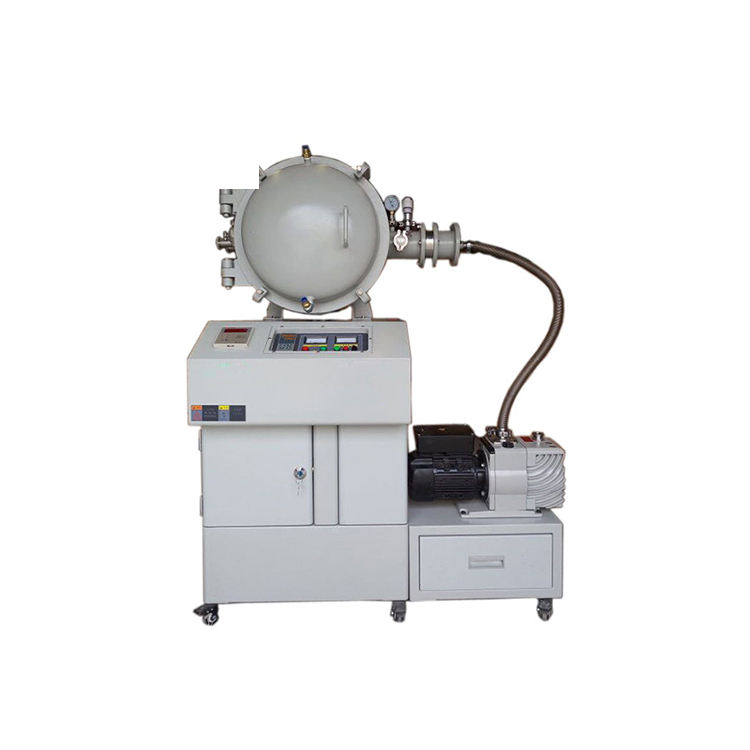

This electric furnace is a very cost-effective vacuum furnace.
Low price, simple operation, excellent vacuum effect, good temperature field uniformity. It is used for high temperature vacuum sintering,
annealing,tempering and aging treatment of ceramic materials, ceramic metal composites, refractory metals and alloy materials, as well as vacuum
Brazing of alloy tools and superhard materials.
Features:
Optional accessories:
independent control cabinet
PLC automatic control system
Rapid furnace cooling system
Technical parameter：1200Type
| Model | Max Temp.(℃) | Chamber size
(W*H*D)mm |
Heating element | Capacity
(L) |
Power
(KW) |
Vacuum |
| DM-12HVF-1 | 1200 | 100*100*100 | Resistance wire | 1 | 1.2 | 7*10-3Pa |
| DM-12HVF-5 | 1200 | 150*150*200 | Resistance wire | 4.5 | 3.5 | 7*10-3Pa |
| DM-12HVF-12 | 1200 | 200*200*300 | Resistance wire | 12 | 5 | 7*10-3Pa |
| DM-12HVF-36 | 1200 | 300*300*400 | Resistance wire | 36 | 12 | 7*10-3Pa |
| DM-12HVF-64 | 1200 | 400*400*500 | Resistance wire | 80 | 18 | 7*10-3Pa |
| DM-12HVF-125 | 1200 | 500*500*700 | Resistance wire | 175 | 30 | 7*10-3Pa |
| DM-12HVF-216 | 1200 | 600*600*900 | Resistance wire | 324 | 50 | 7*10-3Pa |
Technical parameter：1700Type
| Model | Max Temp.(℃) | Chamber size
(W*H*D)mm |
Heating Element | Capacity
(L) |
Power
(KW) |
Vacuum |
| DM-17HVF-1 | 1700 | 100*100*100 | MoSi2 heater | 1 | 1.5 | 7*10-3Pa |
| DM-17HVF-5 | 1700 | 150*150*200 | MoSi2 heater | 4.5 | 5 | 7*10-3Pa |
| DM-17HVF-12 | 1700 | 200*200*300 | MoSi2 heater | 12 | 8 | 7*10-3Pa |
| DM-17HVF-36 | 1700 | 300*300*400 | MoSi2 heater | 36 | 12 | 7*10-3Pa |
| DM-17HVF-64 | 1700 | 400*400*500 | MoSi2 heater | 80 | 30 | 7*10-3Pa |
| DM-17HVF-125 | 1700 | 500*500*700 | MoSi2 heater | 175 | 45 | 7*10-3Pa |
| DM-17HVF-216 | 1700 | 600*600*900 | MoSi2 heater | 324 | 66 | 7*10-3Pa |
Can Be Customized
