Rotary Tube Furnace

DM-12NRT rotary tube furnace is designed for calcining inorganic compound with better uniformity, especially excellent for preparing Li-Ion battery cathode materials with conductive coating, such as LiFePO3, LiMnNiO3, etc in R&D Laboratory.

Vacuum Furnace

Electrochemical Equipment

Consumables

Lab Furnace

Industrial Furnace

WE CAN HELP YOU !

Our professional team can solve various lifting equipment problems for you!

Features:

Features:

Max temperature 1200^oC
50 segments programmable and PID auto control
Heating rate: 0~20 ^oC/min
Temperature accuracy: ±1^oC
Upper open furnace cover design for real-time observation of heated materials
Furnace tilt angle0 – 30^o variable, it’s convenient for loading and unloading material
Tube rotating Speed3 – 7 RPM variable ( reversible), and there are 3 quartz lifting plates on the inner wall of the tube. When rotating, the material is fully turned over and evenly heated
It has safe operation functions such as opening and closing power, over temperature alarm and leakage protection

Standard Parts:

Standard Parts:

Tube plug 2 pcs; Thermocouple 1 pcs;

Quartz tube 1 pcs; Vacuum pump 1 pcs;

Vacuum flange 1 sets;

Vacuum pressure gauge 1 pcs

Technical Parameter:

Technical Parameter:

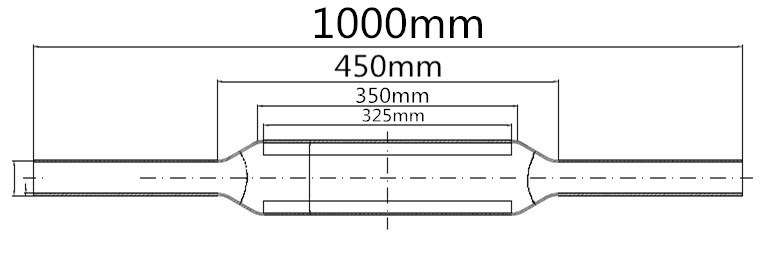

Model	Tube Size (Both End Dia Meter*Heating Zone Length)	Middle Part Diameter	Power	Max Working Temperature	Thermocouple	Tube Material	Heating Element
DM-12NRT-60/300	60x300mm	120mm	3 KW	1100^oC	K type	Quartz tube	Fe-Cr-Al-Mo wire
DM-12NRT-60/450	60x450mm	120mm	5 KW
DM-12NRT-80/300	80x300mm	150mm	3 KW
DM-12NRT-80/450	80x450mm	150mm	5 KW
DM-12NRT-100/300	100x300mm	180mm	5 KW
DM-12NRT-100/450	100x450mm	180mm	7 KW
DM-12NRT-150/300	150x300mm	200mm	7KW
DM-12NRT-150/450	150x450mm	200mm	9 KW

Can Be Customized
