Ceramic Type Kiln

Roller Kiln

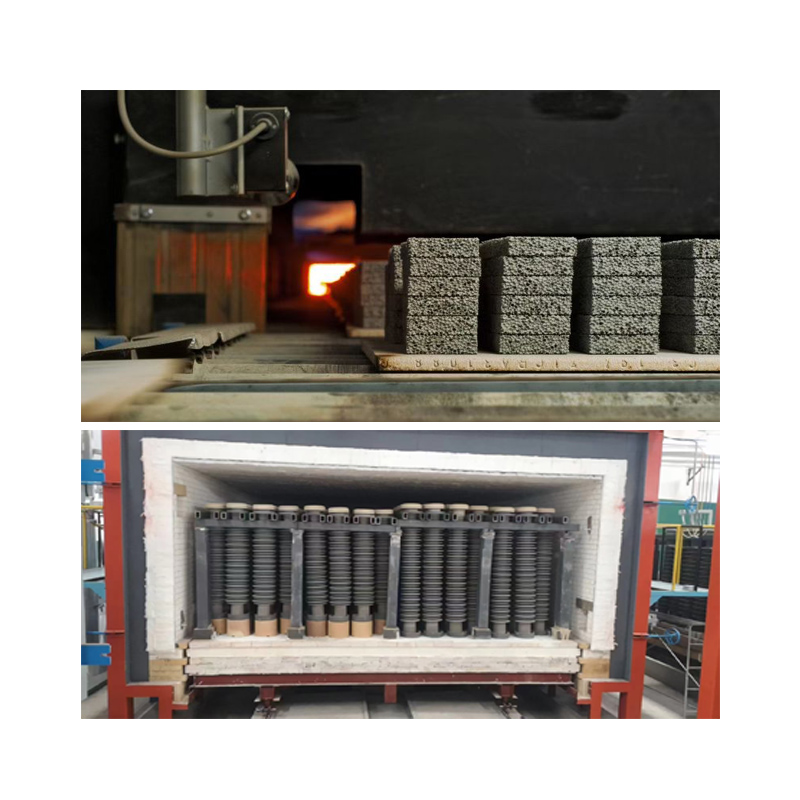

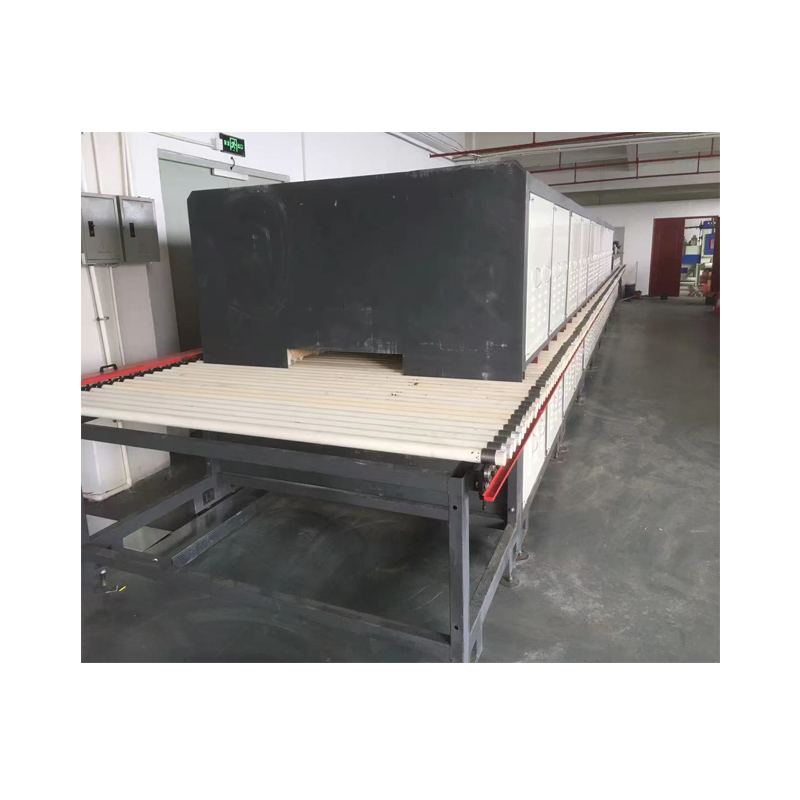

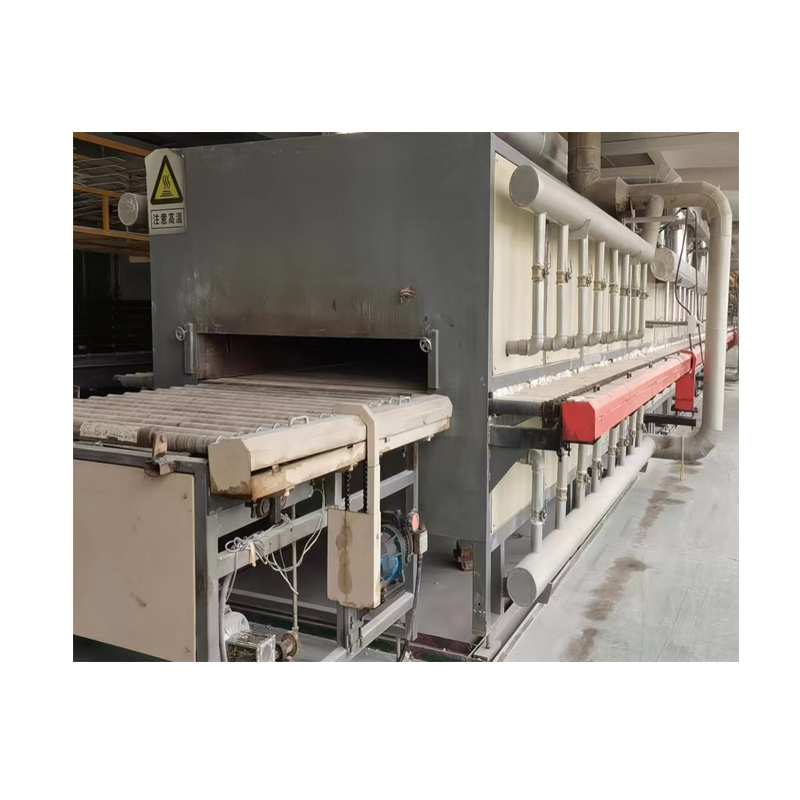

The roller kiln is a continuous sintering kiln. The main fuel is natural gas or liquefied petroleumgas. The maximum working temperature is 1350 degrees. It is mainly used for ceramic sintering,such as ceramic tableware, ceramic bathroom ware, and power ceramics,Filter ceramics, tiles,etc.

Share:
Application

Ceramic industry
– Building ceramics: used to fire various tiles, such as glazed tiles, porcelain tiles, etc., which can achieve rapid firing, improve production efficiency and product quality.

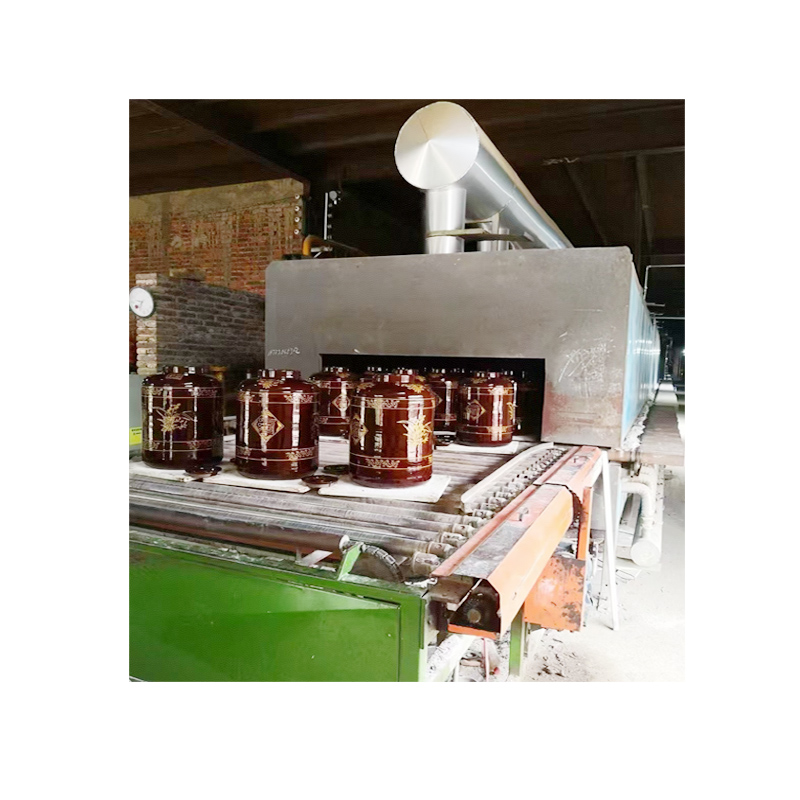

– Daily ceramics: used for color firing, bisque firing, glaze firing and one-time firing of daily ceramics, which can ensure the color consistency and quality stability of the products.
– Sanitary ceramics: used to fire sanitary ware, such as toilets, wash basins, etc., to ensure that the products have good hardness and strength.
– Art ceramics: meet the firing needs of artistic ceramics and ensure their artistic quality and performance.

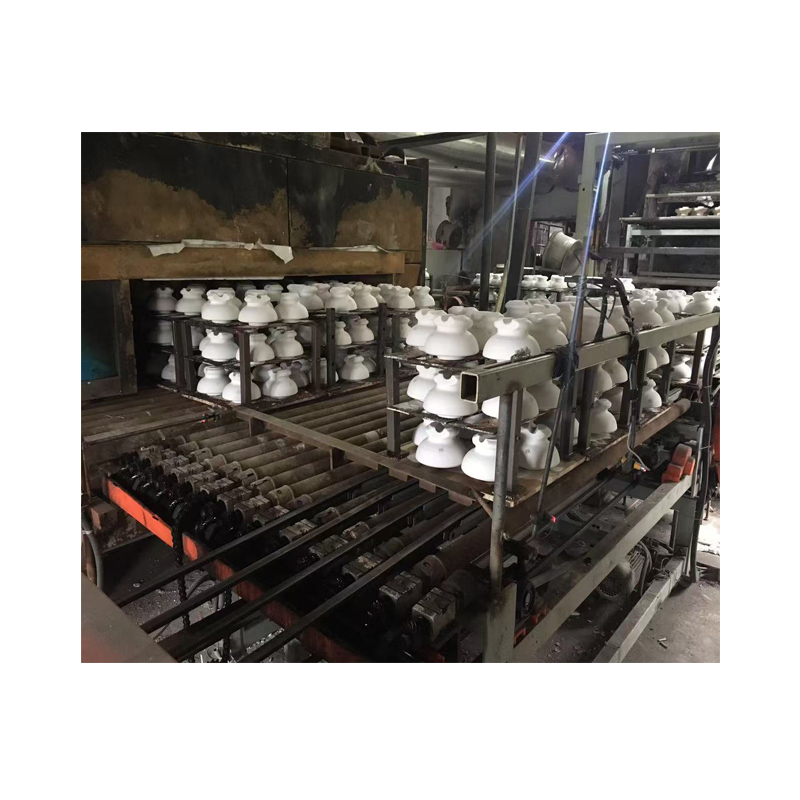

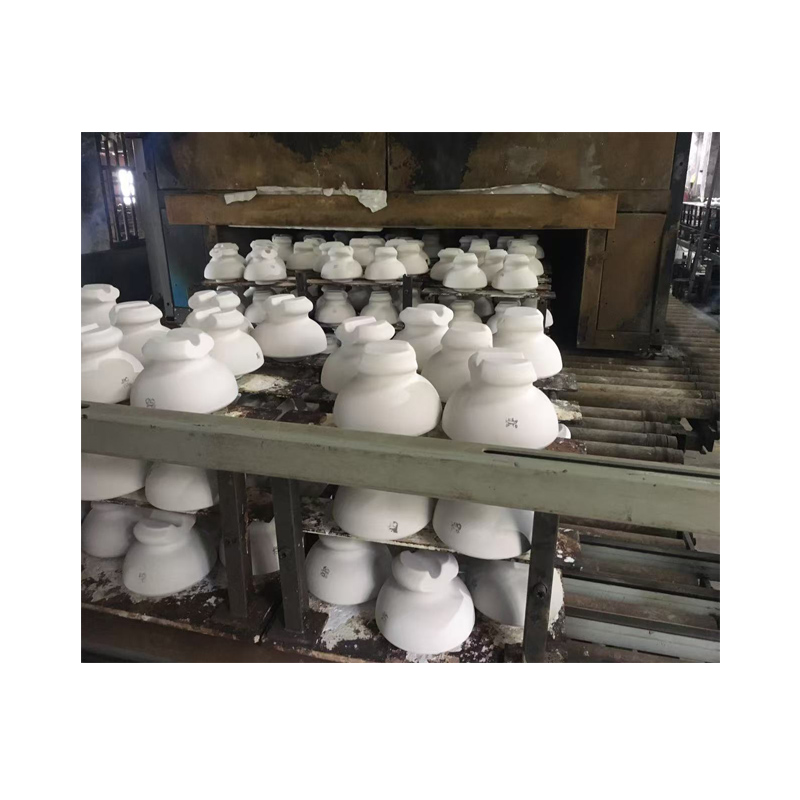

– Industrial ceramics: used to fire electronic ceramics, abrasives, new energy materials, etc., to adapt to the firing temperature and atmosphere requirements of different materials.

New energy materials
– Lithium battery positive electrode material: It is the core production equipment of the lithium battery positive electrode material sintering link, which can be used to sinter lithium ion ternary materials, lithium cobalt oxide positive electrode materials, lithium manganese oxide positive electrode materials, etc.

Metallurgical industry
– Steel production: used to heat steel materials to reach the required temperature for subsequent processing.
– Nonferrous metal processing: In nonferrous metal processing, it is used for heat treatment of materials to improve the physical properties of materials.

Building materials industry
– Cement production: It is used to heat cement raw materials to react and form cement.
– Brick and tile production: It is used to burn bricks and tiles to make their hardness and strength meet the requirements.

Chemical industry
– Fertilizer production: It is used to heat chemical raw materials to react and form fertilizers.
– Pesticide production: It is used to dry pesticide preparations to ensure the quality and stability of preparations.

Food processing industry
– It is used to bake foods such as bread and biscuits to ensure that the food is evenly baked and tastes good.

Laboratory field
– It can be used in university laboratories, scientific research institutions, industrial laboratories, etc., for burning various experimental materials and samples.

Case
Item Name Parameter Remark
1 Product Terracotta Product Height≤450
2 Production Cycle 300-420 Minutes Adjustable
3 Rated Temperature ≤1050°C Long Term Working Temperature
4 Atmosphere Oxidizing Neutral Flame
5 Fuel Natural Gas
6 Calorific Value 8300Kcal/m3
7 Temperature Uniformity ±5°C
8 Total Length 38 Meters Feeding Table 1 meter/Discharge Table 1 meter
9 Inner Width 800mm Backing Plate 500X500
10 Unit Length 2000mm
11 Kiln Unit Number 18 Paragraphs
12 Kiln Body Width 1780mm Widest Size
13 Kiln Body Height  2000mm About 4000(Including The Fan)
14 Roller Spacing 80mm
15 Roller Center Height 850mm
16 Roller Specifications Ф60×2050mm
17 Quantity of Ceramic Roller 475 Pieces Total Number of Whole Kilns
18 Number of Burners 36 Pieces
19 Temperature Control 6 Sets
20 Temperature Detection 13 Points The Whole Kiln Temperature Detection Point
21 Transmission Motor 6 Sets Inverter Control
22 Fire Damper 5 Sets
23 Dehumidification Fan 1 Set 5.5KW
24 Combustion Fan 1 Set 5.5KW
25 Rapid Cooling Fan 1 Set 3KW
26 Exhaust Fan 1 Set 5.5KW
27 Tail Cooling Fan 2 Sets 0.75KW
28 Combustion System 1 Set Frequency Conversion Adjustment
29 Smoke Exhaust System 1 Set Frequency Conversion Adjustment
30 Quench Pressure System 1 Set Frequency Conversion Adjustment
31 Wind Pressure System 1 Set Low Pressure
32 Gas Pressure Alarm 2 Sets High Pressure Alarm, Low Pressure Alarm
33 Drive Motor Alarm 1 Set Motor Failure
34 Fan Alarm System 4 Sets Smoke Exhaust/Combustion Support/

Rapid Cooling/Heat Extraction

35 Gas Pressure System 1 Set main pipeline stabilizer

Can Be Customized
