Home > Products > Lab Furnace > Pre-vacuum Atmosphere Furnace
Products
Lab Furnace

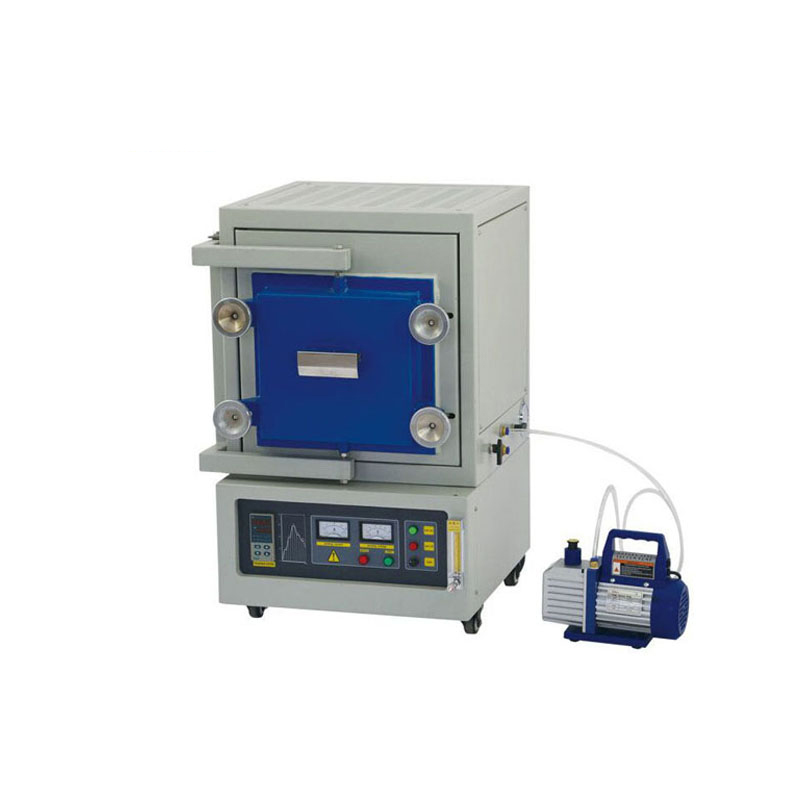

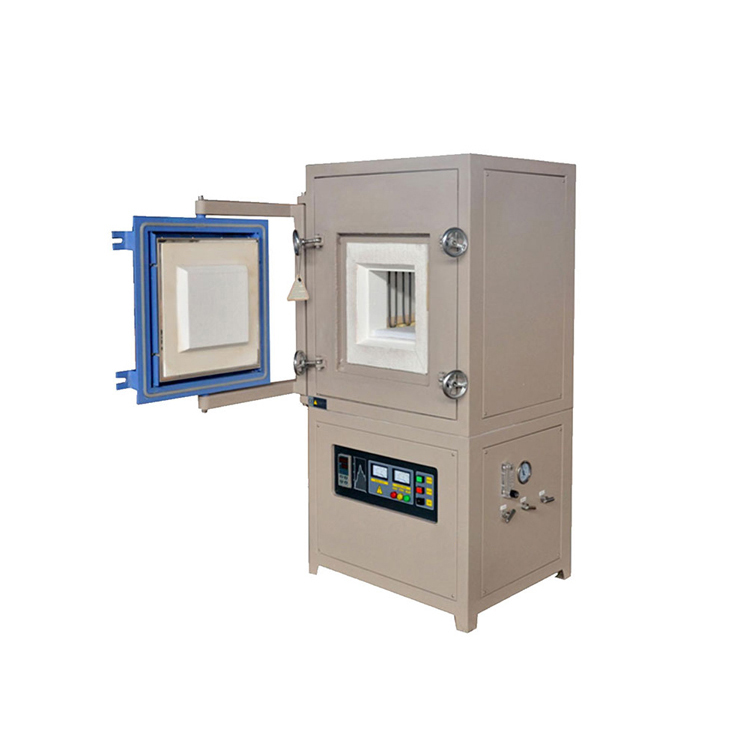

Pre-vacuum Atmosphere Furnace

  • This furnace is pre-vacuumed to ensure that the oxygen content in the furnace is minimized, and then nitrogen, argon or nitrogen-hydrogen is introduced to obtain the desired heating treatment under the protection of the atmosphere. Due to its excellent atmosphere and compactness, it has been widely used in material laboratories or small batch production of semiconductors, silicon nitride and other products.
ASK FOR A QUOTE ONLINE CONTACT
Share:
Vacuum Furnace
Electrochemical Equipment
Consumables
Lab Furnace
Industrial Furnace
WE CAN HELP YOU !
Our professional team can solve various lifting equipment problems for you!
CONTACT US
Features:

Features:

  • RT～1700℃
  • The furnace is made of alumina polycrystalline fiber, and the temperature field is balanced and pollution-free.
  • Fully enclosed structural furnace, double-layer thickened steel plate, canbear 1 Mpa pressure
  • The top, left, right, and back are made of 12mm solid square steel for reinforcement, and the vacuum is not deformed. The maximum vacuum can be up to -0.08MPa.
  • Temperature controllingsystem adopts industrial precision 0.2-level intelligent instrument, PID adjustment, 50-segment programming
  • The furnace door has good sealing performance. Four handwheels lock the furnace door,and use the silicone ring to
Standard accessories：
Additional accessories

Standard accessories：Fire Brick (Below 300*300*300mm); Operation manual; rotary vane vacuum pump;

Additional accessories：

  • Direct-connected vacuum pump
  • touch screen / computer connection software
  • crucible(multi-layer kiln furniture)
  • heating element (Sic and MoSi2)
  • Air system (float / proton flow meter, 2 / 3 channels of gas)
Technical Parameter(1200 Type):

Technical Parameter:1200 Type

Model Max. Temp. Chamber Size(W*H*D) Voltage Power
DM-12AN-1 1200℃ 100*100*100mm 220V 0.8kW
DM-12AN-2 1200℃ 120*120*130mm 220V 1.2kW
DM-12AN-3 1200℃ 150*150*150mm 220V 2.5kW
DM-12AN-5 1200℃ 150*150*200mm 220V 3kW
DM-12AN-8 1200℃ 200*200*200mm 220V 5kW
DM-12AN-12 1200℃ 200*200*300mm 220V 6kW
DM-12AN-27 1200℃ 300*300*300mm 380V 8kW
DM-12AN-36 1200℃ 300*300*400mm 380V 10kW
DM-12AN-64 1200℃ 400*400*400mm 380V 16kW

Technical Parameter:1400 Type

Model Max. Temp. Chamber Size(W*H*D) Voltage Power
DM-14AS-1 1400℃ 100*100*100mm 220V 1kW
DM-14AS-2 1400℃ 120*120*130mm 220V 2kW
DM-14AS-3 1400℃ 150*150*150mm 220V 3kW
DM-14AS-5 1400℃ 150*150*200mm 220V 4kW
DM-14AS-8 1400℃ 200*200*200mm 220V 5kW
DM-14AS-12 1400℃ 200*200*300mm 220V 7kW
DM-14AS-27 1400℃ 300*300*300mm 380V 9kW
DM-14AS-36 1400℃ 300*300*400mm 380V 11kW
DM-14AS-64 1400℃ 400*400*400mm 380V 18kW



Technical Parameter:1700 Type

Model Max. Temp. Chamber Size(W*H*D) Voltage Power
DM-17AM-1 1700℃ 100*100*100mm 220V 1kW
DM-17AM-2 1700℃ 120*120*130mm 220V 3kW
DM-17AM-3 1700℃ 150*150*150mm 220V 4kW
DM-17AM-5 1700℃ 150*150*200mm 220V 5kW
DM-17AM-8 1700℃ 200*200*200mm 220V 7kW
DM-17AM-12 1700℃ 200*200*300mm 220V 8kW
DM-17AM-27 1700℃ 300*300*300mm 380V 10kW
DM-17AM-36 1700℃ 300*300*400mm 380V 12kW
DM-17AM-64 1700℃ 400*400*400mm 380V 20kW

Can Be Customized
