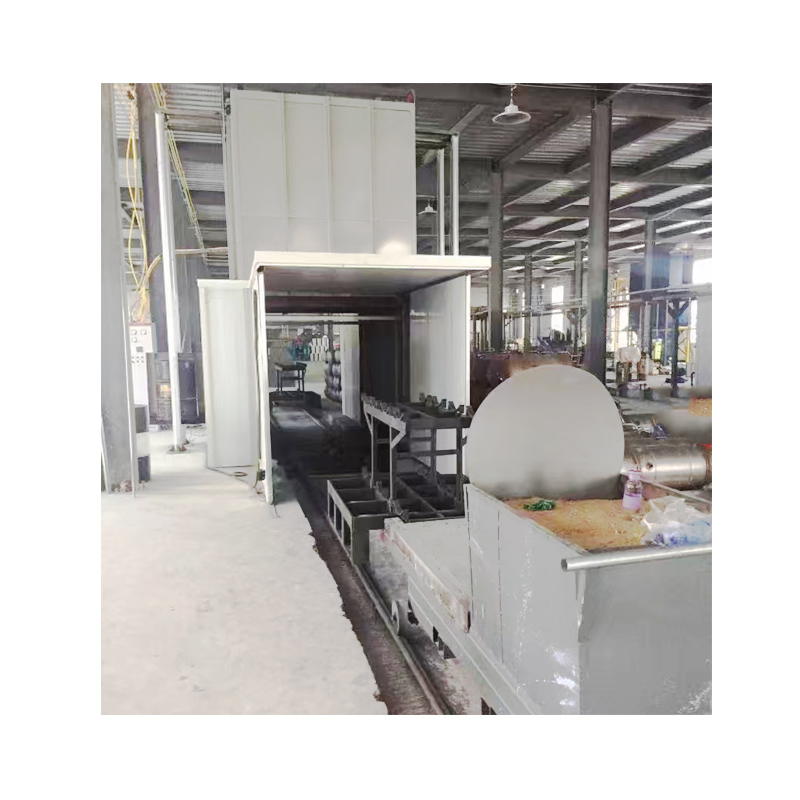

This lifting enamel sintering furnace is a vertical box-type resistance furnace, suitable for high-temperature sintering of various types of enamel pots such as cast iron pans, steak pots, round stew pots, etc. after drying in large quantities, multiple varieties, and multiple specifications.
This furnace type uses the principle of temperature rising all the time to minimize the loss of furnace temperature each time the furnace door is opened.
This equipment is widely used in operations such as high-temperature sintering and curing of small batches of enamel liner, and is the only choice for the transition period towards mass production of fully automatic assembly line enamel sintering furnaces.
When the firing of a furnace is finished → Use the lifting mechanism to lower the furnace door (workbench) and 1# rack to the mobile platform → The platform moves to move 1# rack and workpieces out, and 2# rack and workpieces are moved to the bottom of the high-temperature furnace → The lifting mechanism raises 2# rack and workpieces to the high-temperature furnace for heating and insulation → Wait for about 15 minutes (the time can be set). During this time, the worker needs to remove the fired workpieces on 1# rack and put the dried workpieces to be fired on them → After the sintering of the workpieces in the furnace is completed, the alarm system will remind the worker to lower 2# rack and workpieces → The platform moves to move 2# rack and workpieces out, and 1# rack and workpieces are moved to the bottom of the high-temperature furnace → The lifting mechanism raises 1# rack and workpieces to the high-temperature furnace for heating and insulation

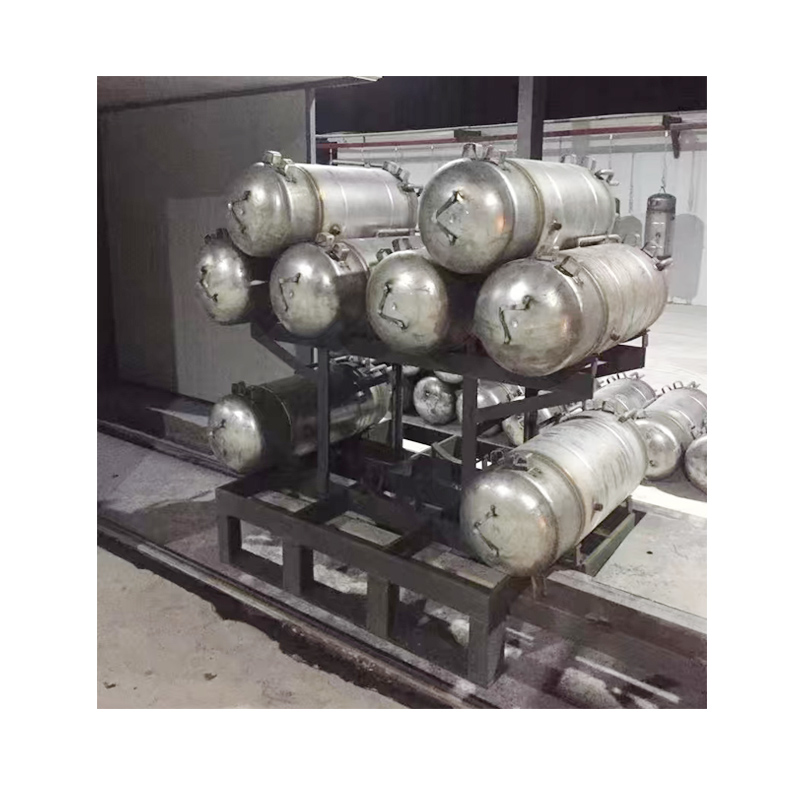

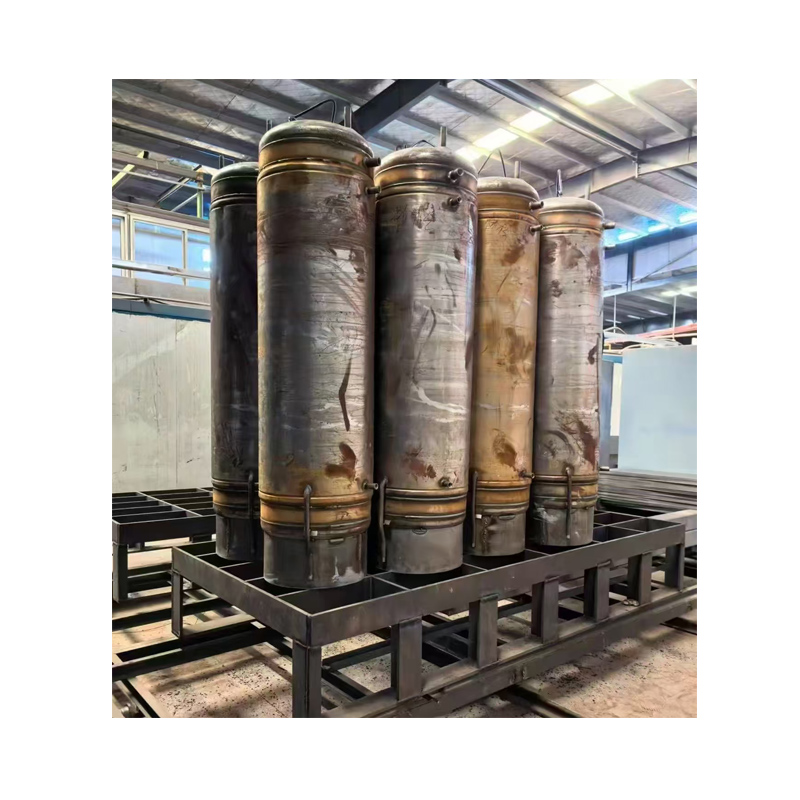

This electric furnace is suitable for sintering enamel liner, enamel water tank, and solar water heater tank.
Our company can provide a complete set of production processes
