Features:

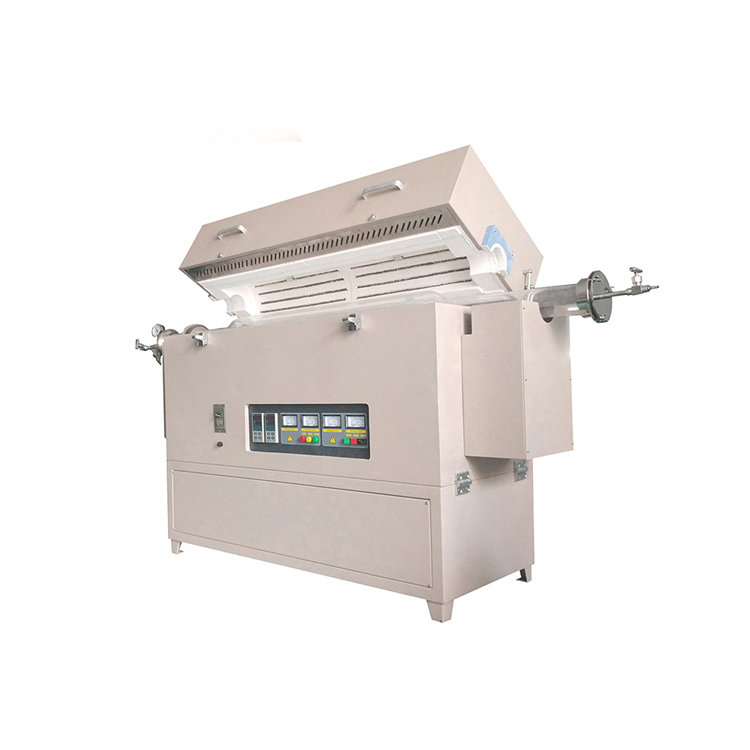

Dming multi-zone tube furnace is split with two, three or five heating zones, which can achieve faster heating up to 1200oC and create a different thermal gradient by adjust different heating zone temperature. It is excellent furnace to prepare functional materials under thermal gradient, epitaxial film growth by CVD or PVD with a vacuum system, and also can be used for annealing, diffusing and sintering sample in various atmospheres.
Standard Parts:
Tube plug 2 pcs; Thermocouple 1 pc; Quartz tube 1 pc; Vacuum pump 1 pc;
Vacuum flange 1 set; Vacuum gauge 1 pc
| Model | Tube Outer Dia *
Heating Zone Length |
Power (KW) | Max Working
Temperature |
Heating Zone | Thermocouple | Tube Material | Heating Element |
| DM-12NT-40/220-2 | 40x220x220mm | 5 KW | 1200oC | 2 zones | K type | Quartz tube | Fe-Cr-Al-Mo wire |
| DM-12NT-60/220-2 | 60x220x220mm | 5 KW | |||||
| DM-12NT-80/220-2 | 80x220x220mm | 6 KW | |||||
| DM-12NT-100/300-2 | 100x300x300mm | 12 KW | |||||
| DM-12NT-120/300-2 | 120x300x300mm | 12 KW |
| Model | Tube Outer Dia*
Heating Zone Length |
Power | Max Working
Temperature |
Heating Zone | Thermocouple | Tube Material | Heating Element |
| DM-14ST-40/220-2 | 40x220x220mm | 5 KW | 1400oC | 2 zones | S type | Alumina tube | SiC heating element |
| DM-14ST-60/220-2 | 60x220x220mm | 5 KW | |||||
| DM-14ST-80/220-2 | 80x220x220mm | 6 KW | |||||
| DM-14ST-100/300-2 | 100x300x300mm | 12 KW | |||||
| DM-14ST-120/300-2 | 120x300x300mm | 12 KW |
| Model | Tube Outer Dia *
Heating Zone Length |
Power | Max Working Temperature | Heating Zone | Thermocouple | Tube Material | Heating Element |
| DM-16MT-40/220-2 | 40x220x220mm | 6 KW | 1600 | 2 zones | B type | Alumina tube | MoSi2
heating element |
| DM-16MT-60/220-2 | 60x220x220mm | 6 KW | |||||
| DM-16MT-80/220-2 | 80x220x220mm | 6 KW | |||||
| DM-16MT-100/300-2 | 100x300x300mm | 12 KW | |||||
| DM-16MT-120/300-2 | 120x300x300mm | 12 KW |
Note: It can also be made into 3 heating zones and 5 heating zones according to customer’s requirement.
