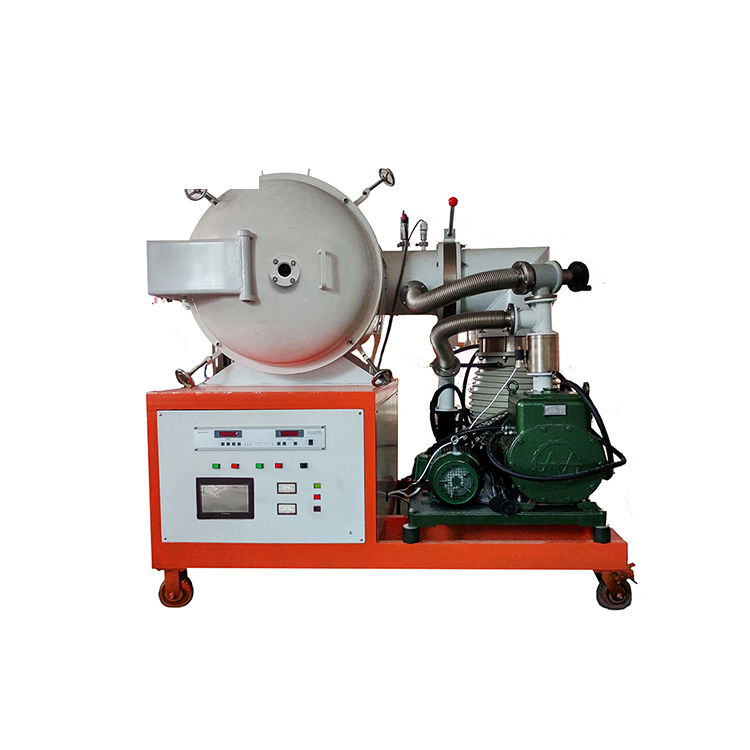

Low vacuum furnace
This electric furnace is a very cost-effective vacuum furnace.
Low price, simple operation, excellent vacuum effect, good temperature field uniformity.It is used in high temperature vacuum sintering, annealing and tempering nof ceramic materials, ceramic metal composites, refractory metals and alloy materials.
Features:
Optional accessories:
Independent control cabinet /PLC automatic control system /Rapid furnace cooling system
Technical parameter：1200Type
| Model | Max Temp.(℃) | Chamber Size
(W*H*D)mm |
Heating Element | Capacity
(L) |
Power
(KW) |
Vacuum |
| DM-12VF-1 | 1200 | 100*100*100 | Resistance wire | 1 | 1.2 | 10Pa |
| DM-12VF-5 | 1200 | 150*150*200 | Resistance wire | 4.5 | 3.5 | 10Pa |
| DM-12VF-12 | 1200 | 200*200*300 | Resistance wire | 12 | 5 | 10Pa |
| DM-12VF-36 | 1200 | 300*300*400 | Resistance wire | 36 | 12 | 10Pa |
| DM-12VF-64 | 1200 | 400*400*500 | Resistance wire | 80 | 18 | 10Pa |
| DM-12VF-125 | 1200 | 500*500*700 | Resistance wire | 175 | 30 | 10Pa |
| DM-12VF-216 | 1200 | 600*600*900 | Resistance wire | 324 | 50 | 10Pa |
Technical parameter：1700Type
| Model | Max Temp.(℃) | Chamber Size
(W*H*D)mm |
Heating Element | Capacity (L) | Power(KW) | Vacuum |
| DM-17VF-1 | 1700 | 100*100*100 | MoSi2 heater | 1 | 1.5 | 10Pa |
| DM-17VF-5 | 1700 | 150*150*200 | MoSi2 heater | 4.5 | 5 | 10Pa |
| DM-17VF-12 | 1700 | 200*200*300 | MoSi2 heater | 12 | 8 | 10Pa |
| DM-17VF-36 | 1700 | 300*300*400 | MoSi2 heater | 36 | 12 | 10Pa |
| DM-17VF-64 | 1700 | 400*400*500 | MoSi2 heater | 80 | 30 | 10Pa |
| DM-17VF-125 | 1700 | 500*500*700 | MoSi2 heater | 175 | 45 | 10Pa |
| DM-17VF-216 | 1700 | 600*600*900 | MoSi2 heater | 324 | 66 | 10Pa |
Can Be Customized
