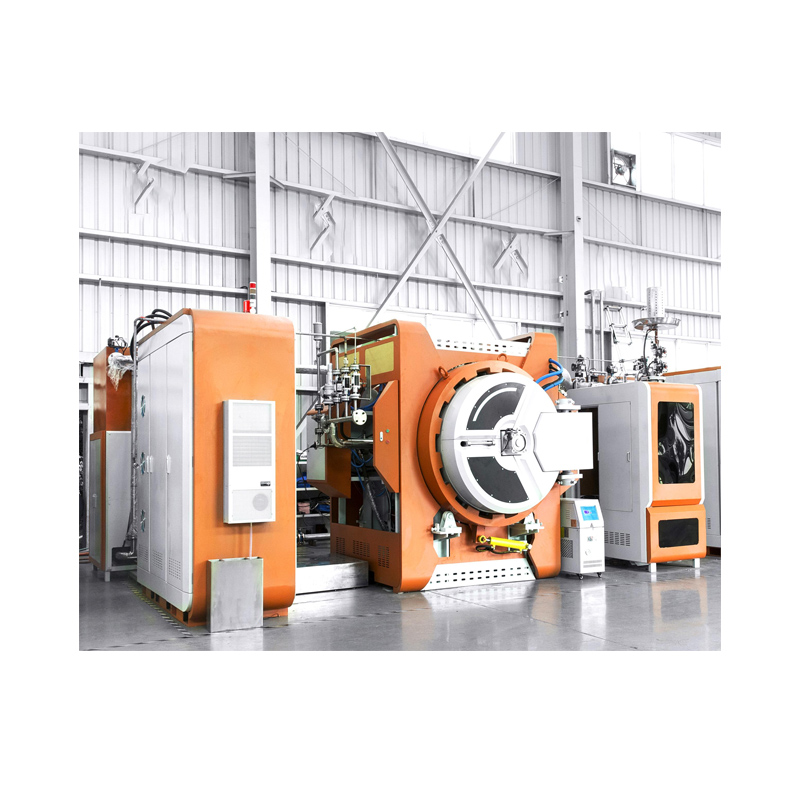

The vacuum pressure sintering furnace is a horizontal resistance heating furnace with multiple independent control loops to ensure high temperature uniformity.
The entire process is controlled by SIEMENS S7-1500 PLC and 15-inch touch screen to realize temperature, heating rate, insulation time and gas flow and pressure automation control, monitoring, tracking and recording, self-diagnosis, and fault handling in all process steps.
This pressure sintering furnace is mainly used for degreasing, sintering, vacuum adjustment, pressure densification, and rapid cooling of high-performance powder metallurgy (hard alloy, etc.) materials in a single sintering cycle.
| Model | DM-PSF2022 | ||
| NO. | Name | Parameter | |
| 1 | Design Life | 6000 Times | |
| 2 | Design Pressure | 10.5 MPa | |
| 3 | Working Pressure | 10.0 MPa | |
| 4 | Effective Loading Area Size | 200*220mm(Dia*H) | |
| 5 | Total Weight | 300Kg | |
| 6 | Design Temperature | 2000℃ | |
| 7 | Maximum Operating Temperature | 1900℃ | |
| 8 | Pressure Use Mode (Room Temp.~ 1900 ℃) | ≤8MPa·G | |
| 10 | Total Power | 75KW | |
| 11 | Heating Rate (Empty Furnace) | ≥12℃/min(≤1600℃) | |
| 12 | Heating Rate (Full Load, 1200℃～1950℃) | ≥8℃/min(1600~1900℃) | |
| 13 | Temperature Uniformity(Vacuum/≤950℃) | ≤±3℃ | |
| 14 | Ultimate Vacuum | ≤1 Pa | |
| 15 | Leak Rate (empty, clean, cold) | ≤3Pa/h | |
| 16 | Pumping Rate (to 5Pa) | ≤20min | |
| 17 | Process Gas Type | N2/H2 | |
| 18 | Process Gas Pressure Requirements | 2.5bar≤P≤4.0bar | |
| 19 | Pressure Rise Rate | 1bar~3bar/min(Adjustable) | |
| 20 | Cooling Rate (1900℃～120℃) | ≤3 h
|
|
| 21 | Cooling Water Inlet Pressure | 2.5bar ≤P≤5.0bar | |
| 22 | Cooling Water Flow Rate | 15m³/h | |
| 23 | Loading Method | Top Loading | |
| 24 | Power Supply | 380V±10%, 50Hz,3-phase | |
