Hydrogen (H2) Atmosphere Furnace

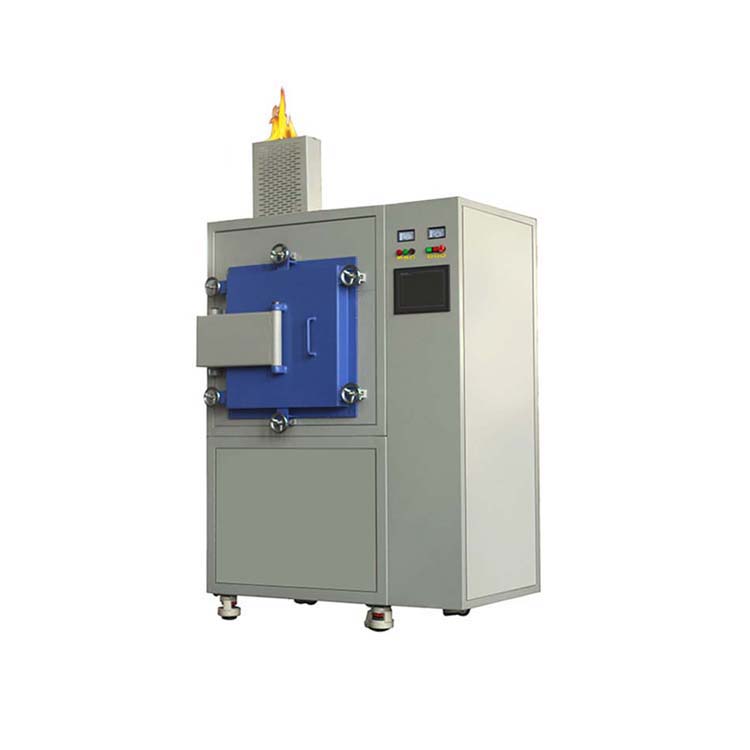

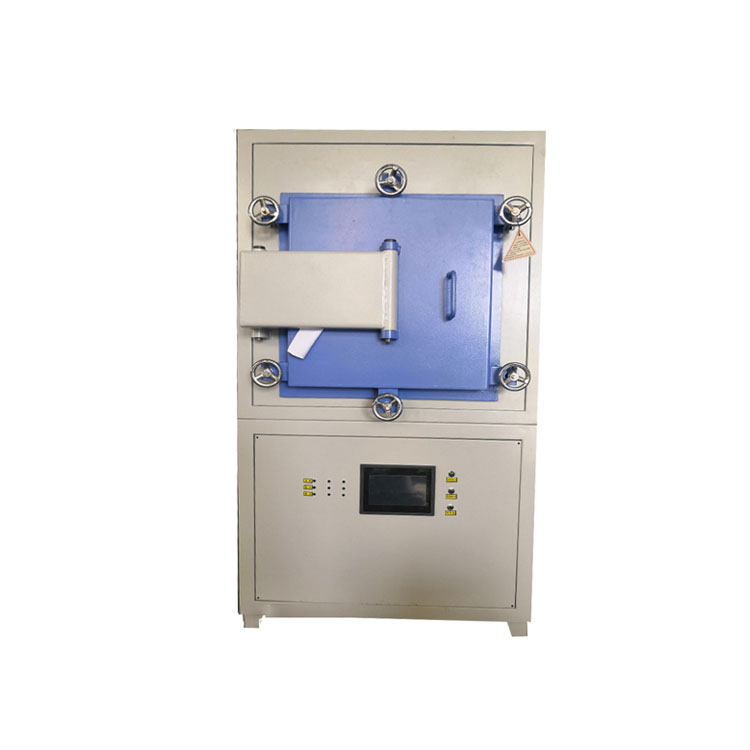

Hydrogen atmosphere furnace is specially designed for sintering or annealing materials in hydrogen or inert gas environment. The highest temperature can reach to 1700℃. Alumina fiber is used as furnace chamber material and Mo wire is used as heating element. Cooling water pipe is embedded in the sealing plate at the top of the furnace body to ensure the sealing performance during working. This electric furnace is suitable for materials (such as fluorescent materials, titanium alloys, etc.) that need to be sintered in the environment of inert gas or reducing atmosphere.

Share:
Features:

Features:

  • The working temperature can be adjusted at 0 ℃~ 1600 ℃.
  • Heating element: High purity molybdenum wire (molybdenum content 99.99%)
  • Double-layer shell structure with air-cooling orwater-cooling system to maintain positive internal pressure of 0.02MP and negative pressure up to -0.1MP.
  • Build pressure sensor and pressure controller. According to the set pressure limit, control the inlet and outlet valves to protect the high and low
  • The furnace body is equipped with two large-flow flowmeters (N2: 0~3.5L / min, H2: 0~3.5L / min) float flowmeter, which can freely control the gas

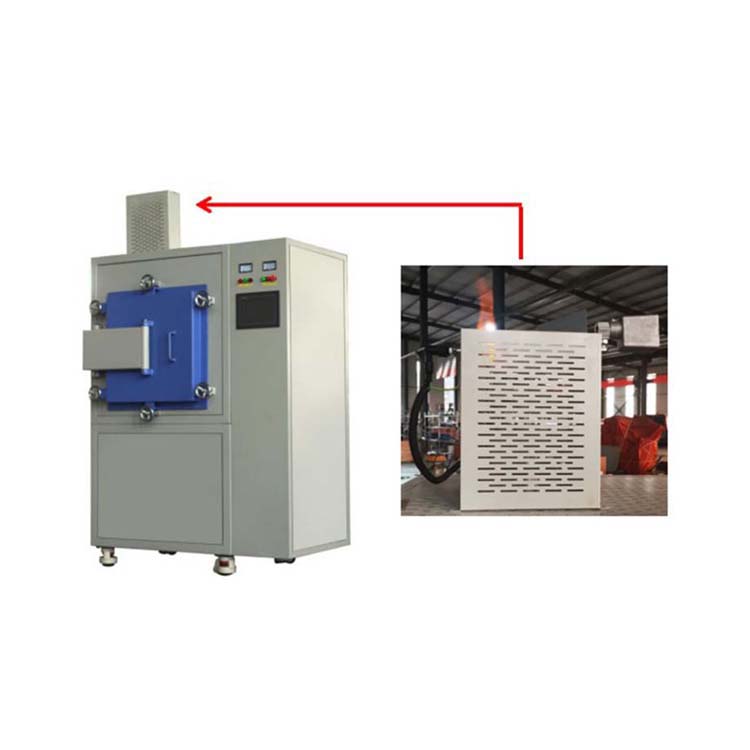

  • H2safety device: H2 tail gas is automatically ignited and burned. The flame detector will automatically ignite when the flame is extinguished. The H2 is automatically cut off when the ignition fails, and then filling N2 for security.

Warning: You must ensure that a qualified hydrogen detector is installed to alert you to a hydrogen leak. .
