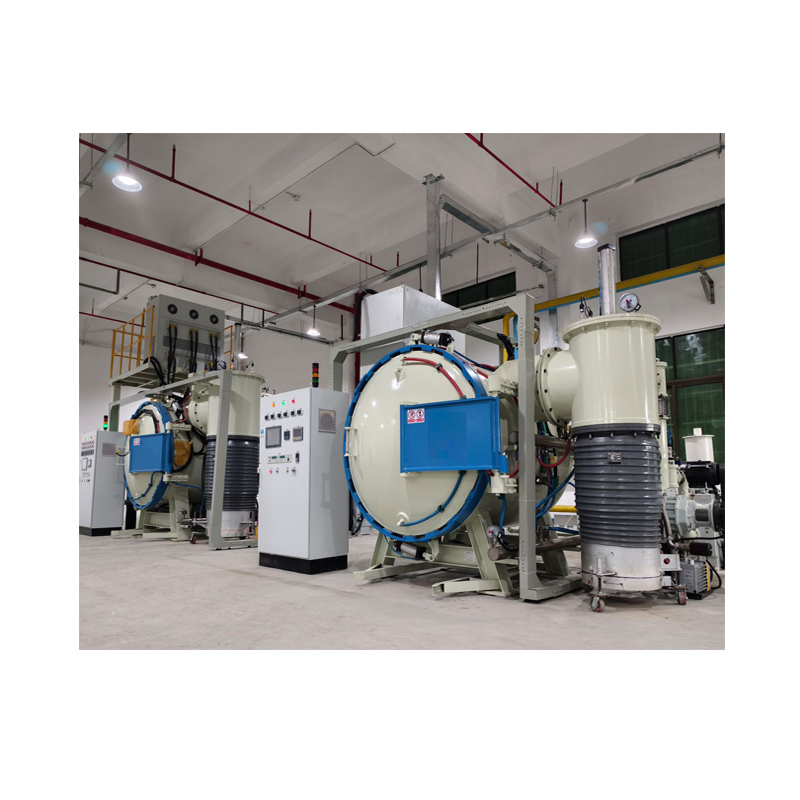

The vacuum tempering furnace is mainly used for the heat treatment of tool steel, die steel, elastic alloy, stainless steel, and 3D additional materials etc.The furnace is mainly composed by heating room, vacuum system,electric control system, air inflation system, water cooling system, pneumatic system and feeding car etc.
The heating chamber is composed by graphite heater, graphite soft felt and hard felt, the max operation temperature is 1300℃.
The material platform is composed by graphite support, hearth and Al2O3 sticker. This structure will prevent the adhesion between platform and hearth during high temperature.
Quick cooling system can be added
| Model | Working Size
(W*H*D)mm |
Max.Temp | Capacity | Temperature Uniformity | Power | Ultimate Vacuum |
| DM-VTF-334 | 300*300*450 | 1320℃ | 100kgs | ±5℃ | 50KW | 6×10-3Pa |
| DM-VTF-446 | 400*400*600 | 1320℃ | 200kgs | ±5℃ | 80KW | 6×10-3Pa |
| DM-VTF-557 | 500*500*700 | 1320℃ | 300kgs | ±5℃ | 120KW | 6×10-3Pa |
| DM-VTF-669 | 600*600*900 | 1320℃ | 500kgs | ±5℃ | 150KW | 6×10-3Pa |
| Can Be Customized | ||||||
We can provide complete heat treatment process and provide heat treatment experiments
