This kind of vacuum Brazing furnace working temperature can reach 1350℃; Suitable for workpiece with silver/copper/nickel base as flux. Due to its high vacuum and high temperature, it can also be used for brazing,sintering and other heat treatment of workpieces.
Features:
Using graphit heater, the highest temperature can reach 1350 ℃.

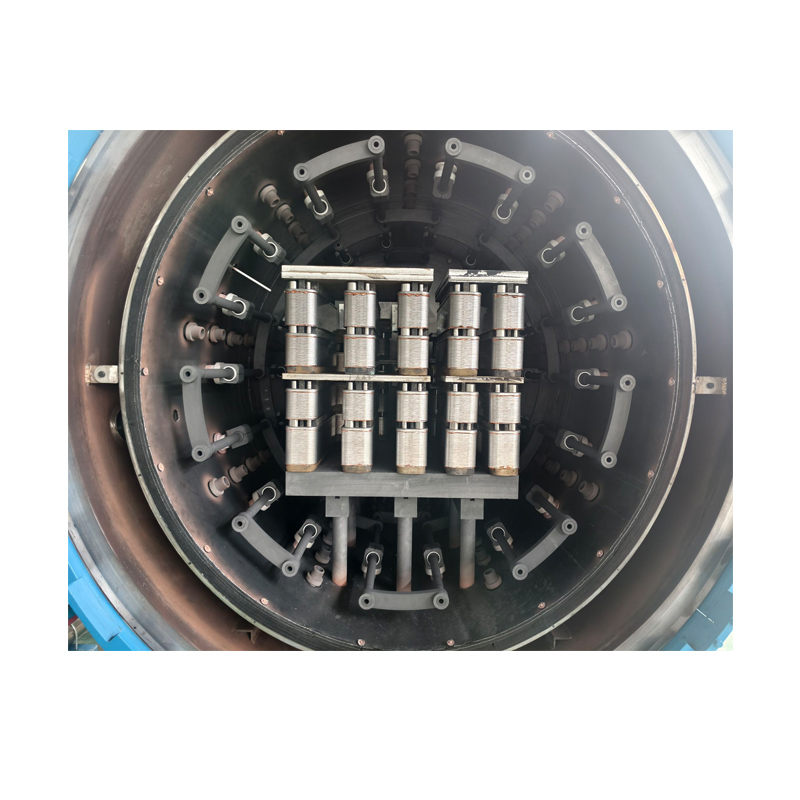

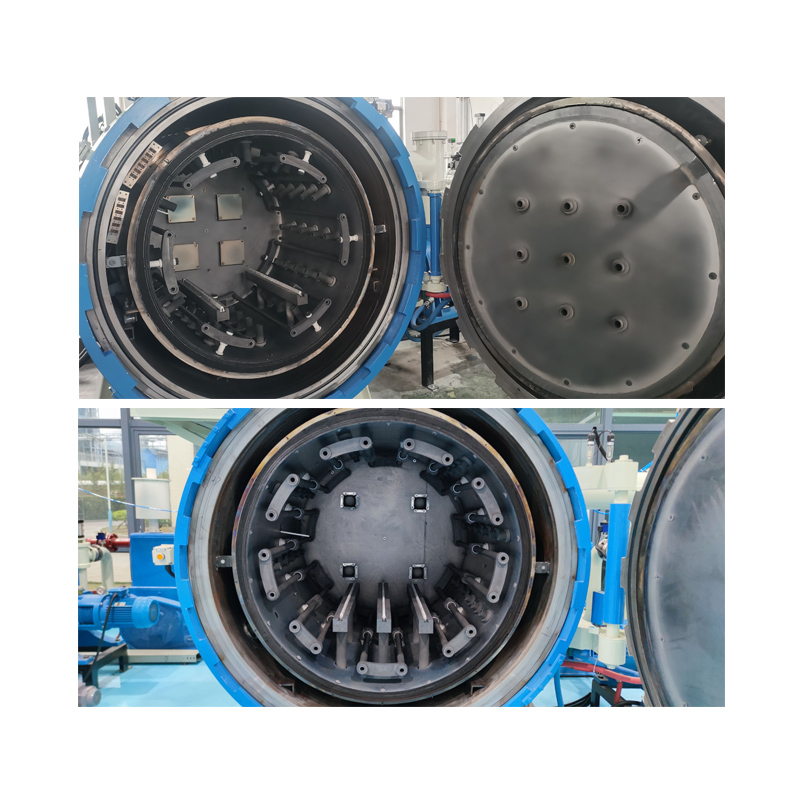

The annular distribution of graphit heater, , the surrounding radiation heating, the furnace temperature uniformity is high, up to plus or minus 5 degrees.

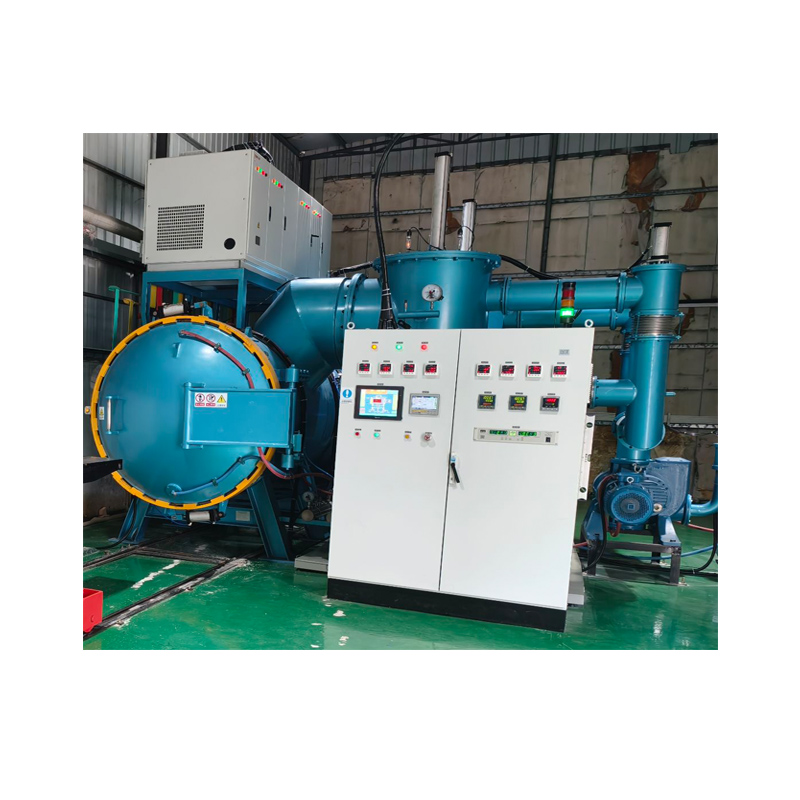

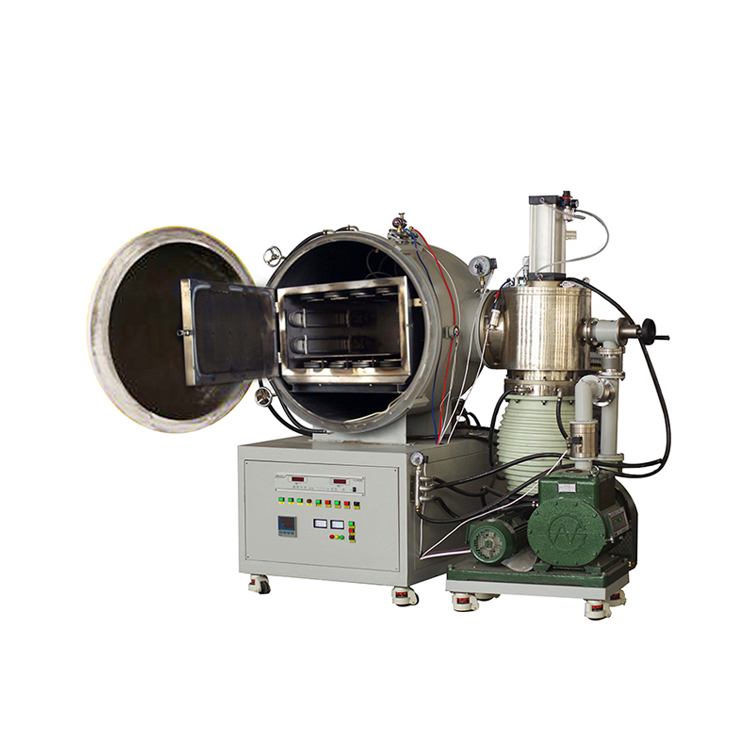

equipped with mechanical pump + diffusion pump vacuum unit, cold vacuum 10-3pa;Working vacuum is 10-2pa.
As required, inert gas can be added for accelerated cooling.
| Model | Chamber Size
(W*H*D)mm |
Temp. | Power（KW） | Voltage |
| DM-QHM-223 | 200*200*300 | 1350℃ | 42 | 380V |
| DM-QHM-334 | 300*300*400 | 1350℃ | 72 | 380V |
| DM-QHM-446 | 400*400*600 | 1350℃ | 120 | 380V |
| DM-QHM-557 | 500*500*700 | 1350℃ | 160 | 380V |
| DM-QHM-669 | 600*600*900 | 1350℃ | 225 | 380V |
| Can Be Customized | ||||
