The production line is mainly designed according to the specifications of products that users need to perform quenching treatment. It consists of a quenching heating furnace, a quenching tank, a washing machine and a tempering furnace. It can be used for all kinds of pins and cylinders and self-tapping for Carburizing and nitriding, quenching and tempering heat treatment in a controlled atmosphere. It is also suitable for other types of batches of medium and small Mechanical parts undergo continuous heat treatment.
The electric furnace adopts a full-fiber structure, the temperature in the furnace is reasonably arranged, the temperature is uniform, the heat preservation performance is good, and the complete automatic control system is adopted, which is safe and convenient.
The temperature control system of the electric furnace adopts imported high-precision smart meter, PID controllable silicon control, each zone is independently controlled, and an automatic recorder is also equipped to record, over-temperature alarm (acousto-optic alarm), temperature control accuracy ±1℃, each mechanical transmission component is Chain control can ensure safe production.
This production line is mainly used for heat treatment such as bright quenching, carburizing, carbonitriding and other heat treatment of various small and medium-sized steel parts such as small bearing rings, standard parts, elastic parts, measuring cutting tools, etc. in a controlled atmosphere.

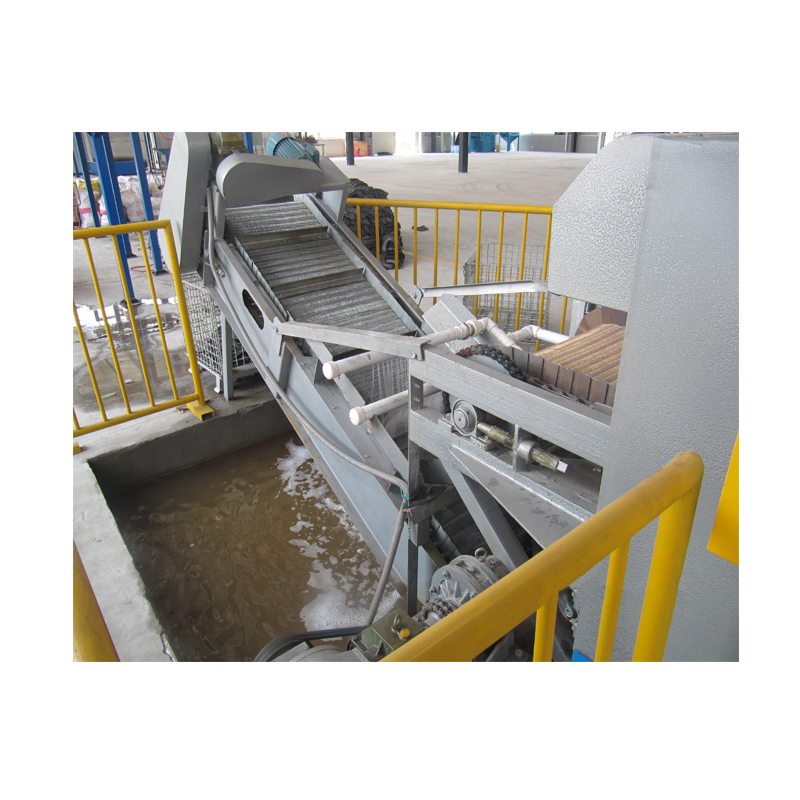

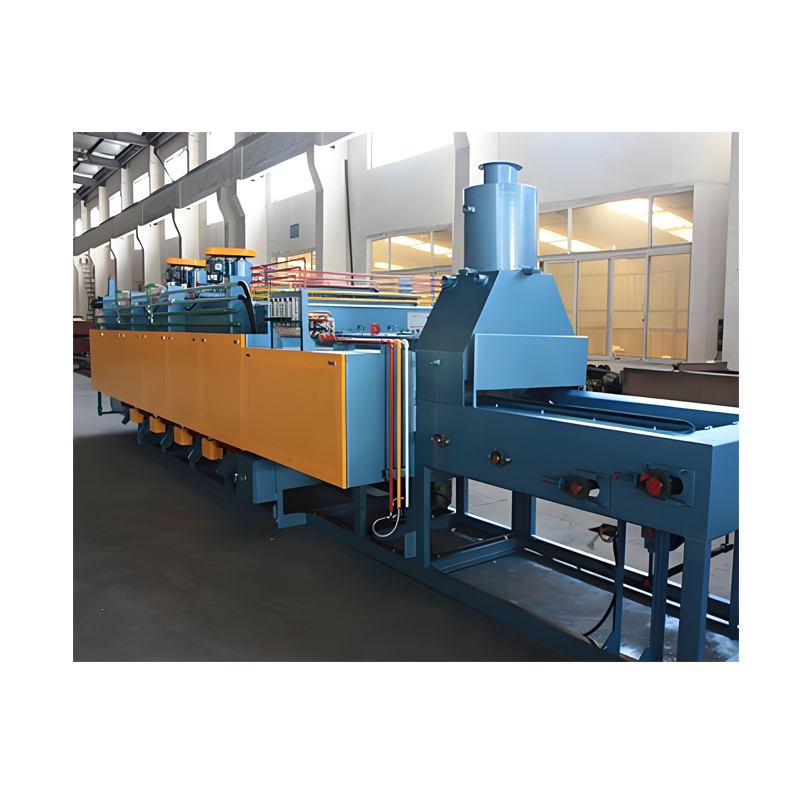

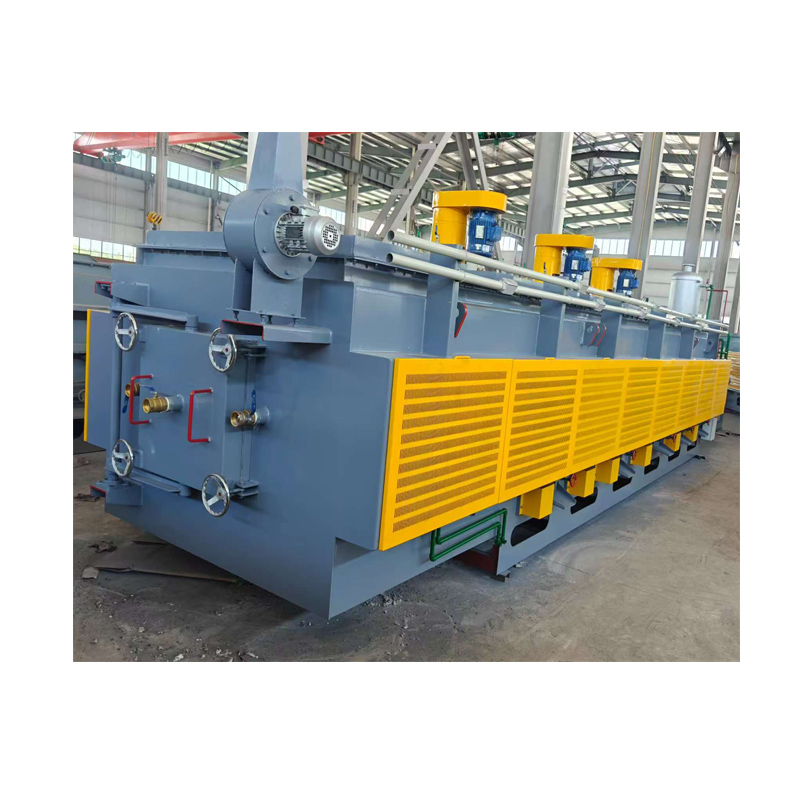

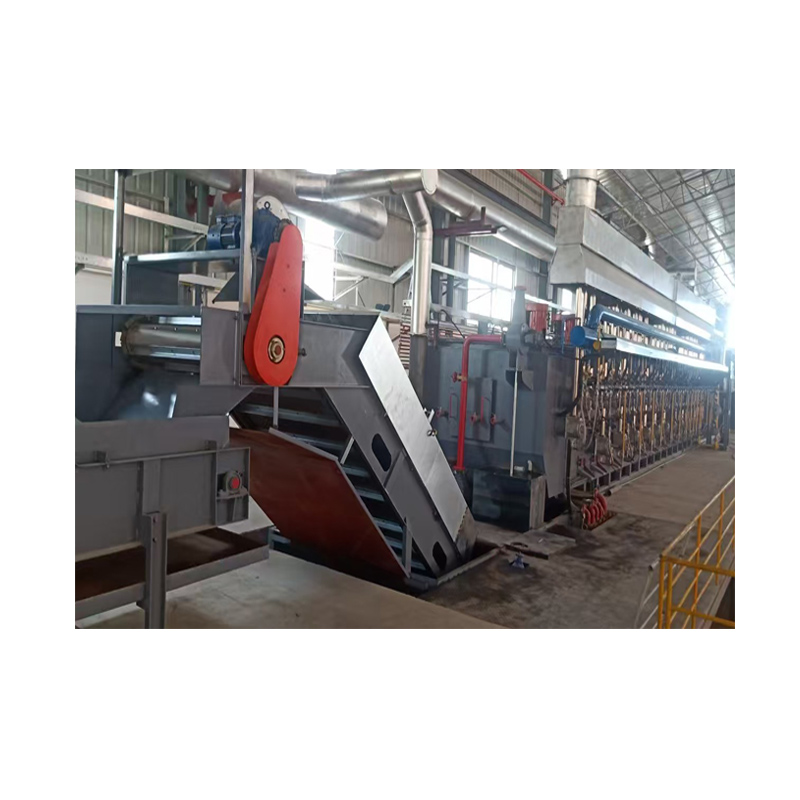

The production line is mainly composed of mesh belt resistance furnace, oil quenching tank, washing machine and mesh belt tempering resistance furnace.
The production capacity is 80-500kg per hour, and customization is supported
We can provide complete heat treatment process.
