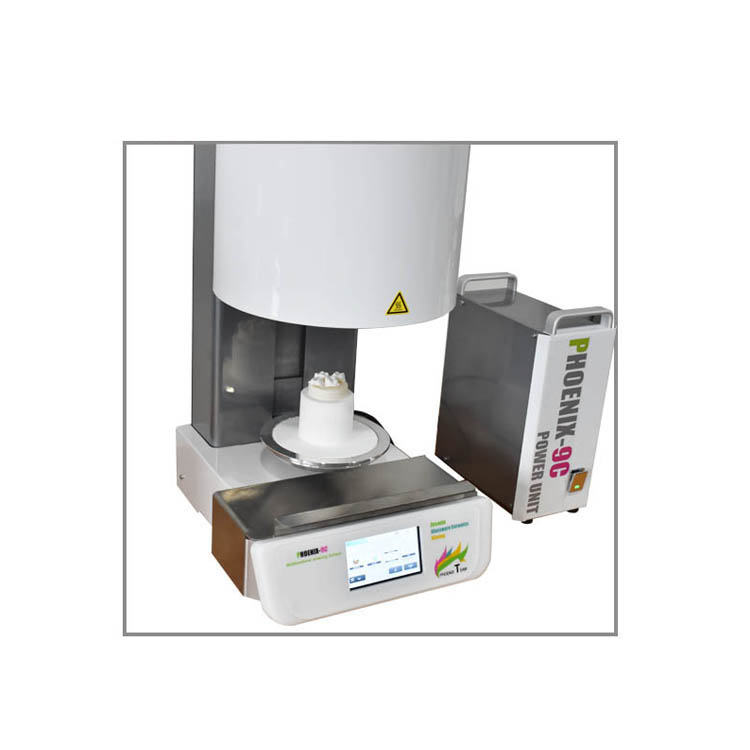

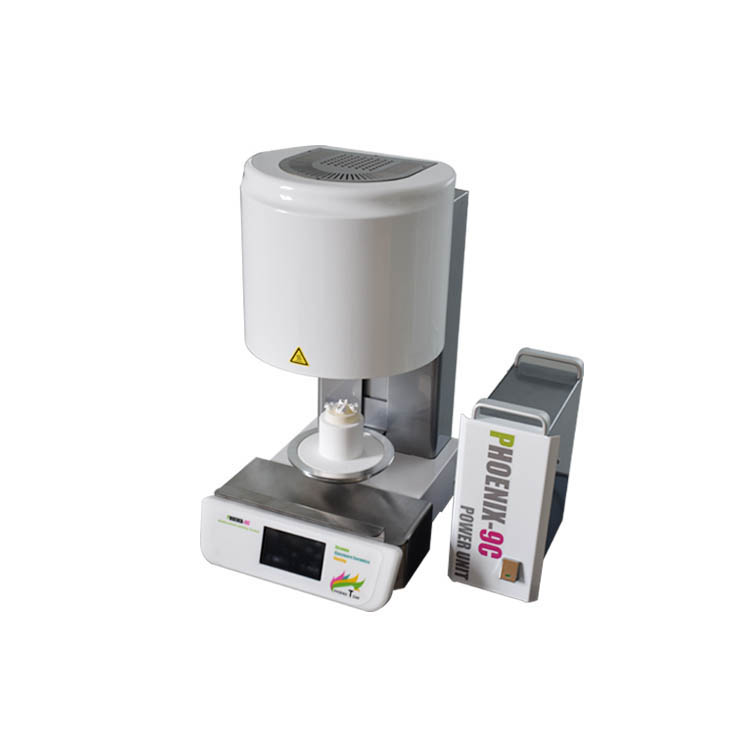

The DMT-Phoenix 9C lifting sintering furnace adopts an electric lifting platform to accurately and quickly put the crucible into the furnace. The heating element adopts the silicon carbide rod imported from Japan, the maximum working temperature is 1530 degrees, the heating is more uniform, and the service life is longer.
Standard Spares:
1 roasting base
1 power cord
1 cooling rack
Features:
DMT-Phoenix 9C is specially designed for the sintering of small batch samples of zirconia denture crystal, structural ceramics and polymer ceramics.
The rated power is only 1.4KW, which is suitable for any small lab.
High speed temperature increasing, 0-200℃/min.
4.7 inch HD touch screen, Easy to operate, Can store 90 different processes program.
Technical Parameters:
| Chamber Size | 65*70mm (Dia*H) |
| Max Working Temperature | 1530℃ |
| Temperature Control | 5 segments programmable and auto control |
| Thermocouple | B Type |
| Temperature Accuracy | ±1 ℃ |
| Power | 1.4 kW |
| Net Weight | 30kg(Include power unit) |
| Shape Size | 320*360*530mm |
