The debinding(degreasing) furnace removes organic matter and volatile matter from the material through high temperature heating, improves the density, mechanical strength and purity of the material, and provides high-quality raw materials for subsequent processing and use. Its efficient and precise degreasing function ensures the quality and performance of the product in the subsequent manufacturing process.
This product is suitable for MIM and CIM degreasing of plastic-based adhesives. The degreasing method is catalytic degreasing, and the catalyst is nitric acid or oxalic acid.
Remove the binder in metal injection molding (MIM) and ceramic injection molding (CIM) workpieces.

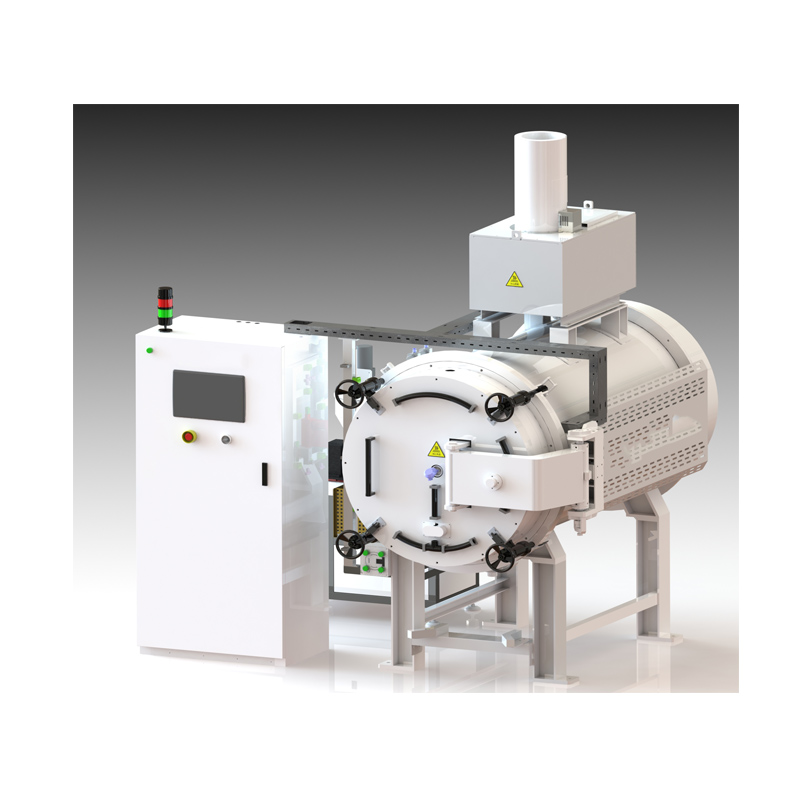

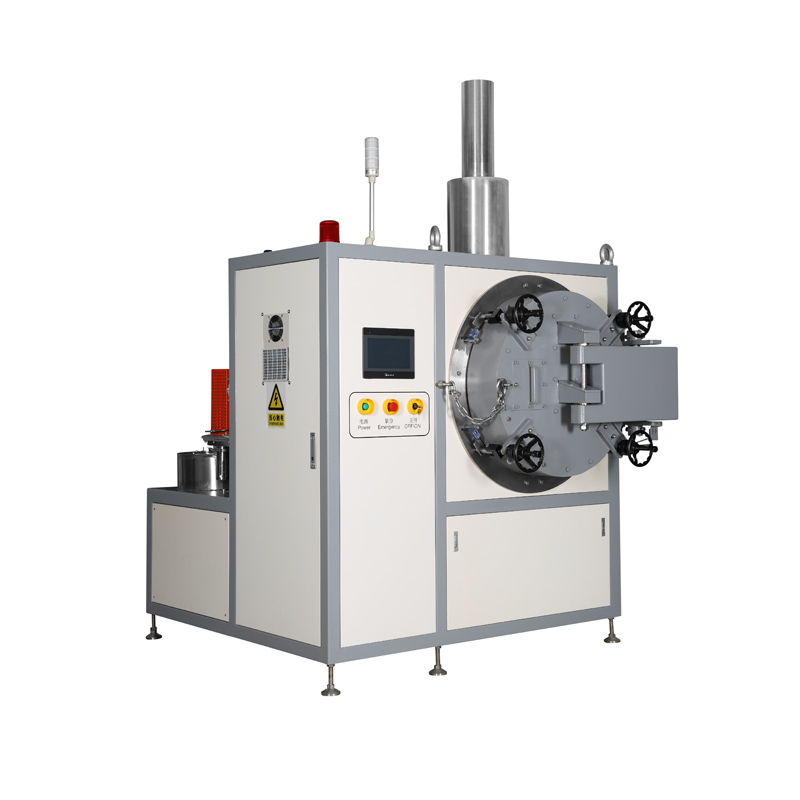

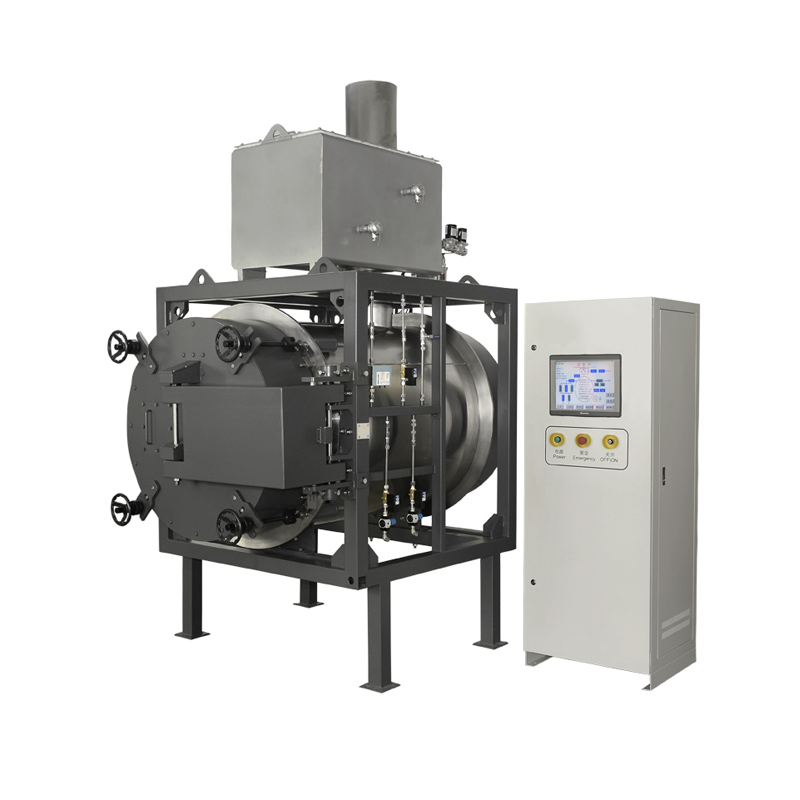

Main features of catalytic degreasing furnace:
1. Human-machine interface, PLC control, each process flow and main parameters are displayed on the touch screen, intuitive and clear;
2. Equipped with manual and automatic buttons, debugging and production are convenient and reliable; all control parameters can be set and changed;
3. All stainless steel shell, beautiful and corrosion-resistant; uniform wind speed cannot be adjusted, suitable for products of various specifications.
Catalytic degreasing furnace is mainly used in the debonding process of metal and ceramic powder injection molding process.
| Model | Catalytic | Effective Loading Size | Power | Dimension(L*W*H) |
| DM-TZL17OA | Oxalic Acid | 220*220*340mm(D*W*H) | 6KW | 730*870*2140mm |
| DM-TZL17NA | Nitric Acid | 220*220*340mm(D*W*H) | 6KW | 730*870*2140mm |
| DM-TZL35OA | Oxalic Acid | 460*276*276*460mm(D*W*H) | 9KW | 2019*789*2120mm |
| DM-TZL47NA | Nitric Acid | 305*305*500mm(D*W*H) | 8KW | 1510*1500*2120mm |
| DM-TZL180OA | Oxalic Acid | 1000*425*425mm(D*W*H) | 22KW | 2075*1770*2720mm |
| DM-TZL206 | Oxalic Acid /Nitric Acid | 860*510*470mm(D*W*H) | 23KW | 1600*2400*2680mm |
| DM-TZL338OA | Oxalic Acid | 1275*536*495mm(D*W*H) | 28KW | 2372*2566*2672mm |
| DM-TZL383 | Oxalic Acid /Nitric Acid | 1150*630*530mm(D*W*H) | 24KW | 2280*2400*2760mm |
| DM-TZL500 | Oxalic Acid /Nitric Acid | 1400*615*575mm(D*W*H) | 30KW | 2670*2400*2790mm |
We can provide debinding process
