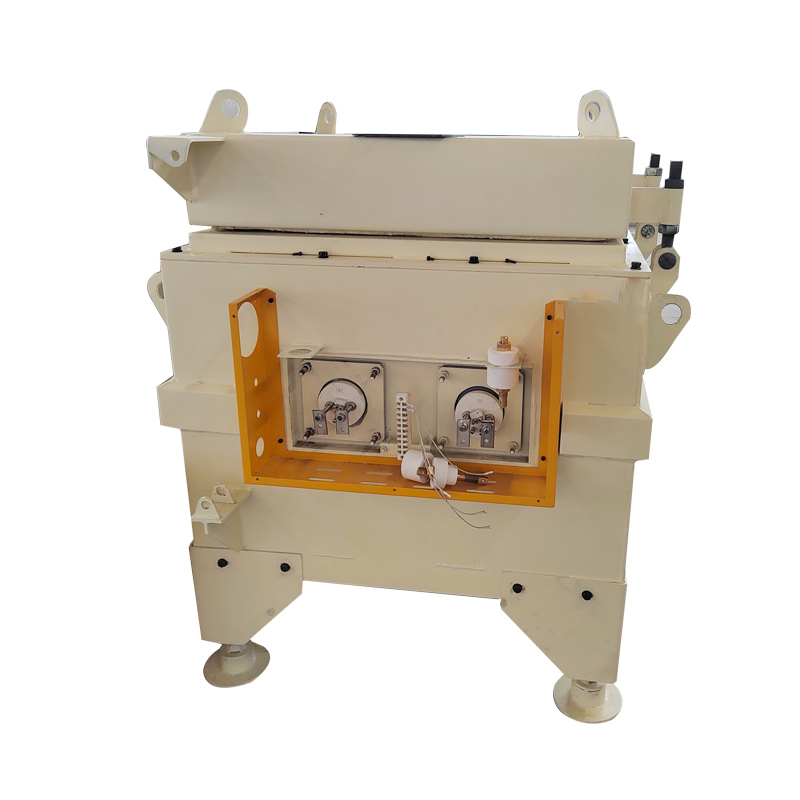

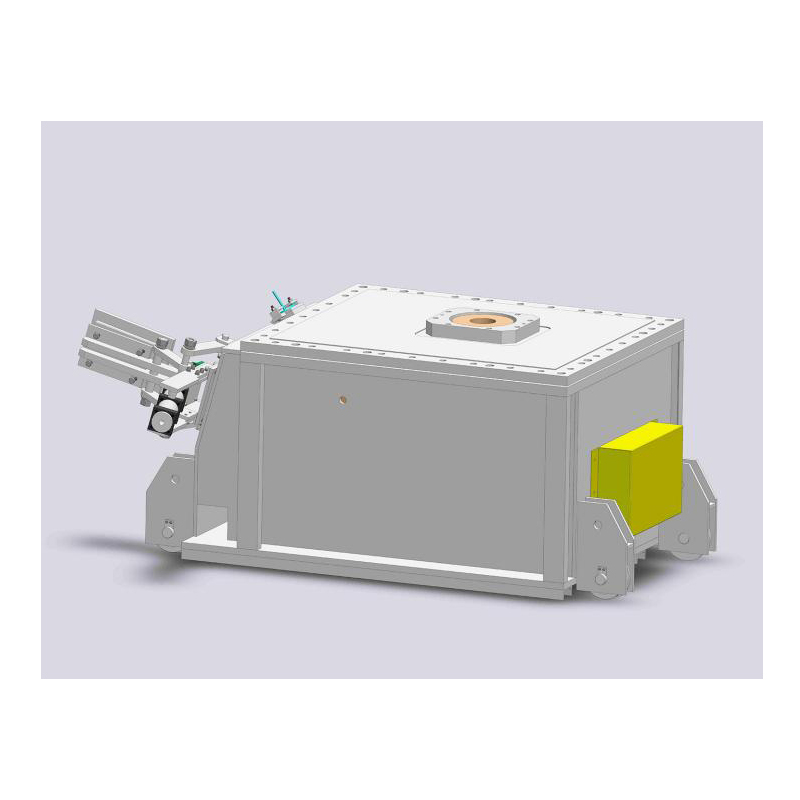

Casting Holding Furnace(Without Crucible)

This equipment is mainly used for aluminium liquid heat preservation in low pressure casting of aluminium parts. The furnace body is constructed as a molten pool type (without crucible).

The molten aluminum does not increase iron and does not affect the quality of the castings; the furnace shell is welded by thick steel plates as a whole, sealed and pressure resistant, has a firm structure, and has a long service life; The heating method adopts immersion or radiation heating, which occupies a small space and has high thermal efficiency; PID control Temperature system, according to the actual temperature control current transmission, to ensure safety and energy saving; furnace lining adopts high-quality ceramic fiber and nano heat insulation board, low heat loss, good furnace insulation effect; configuration of aluminum liquid, furnace over temperature, furnace pressure over limit and other alarms Device; the molten pool furnace is made of brand anti-stick aluminum high-temperature pouring integrally, and the service life is more than five years; the rated capacity is 150-3000KG, and the maximum withstand pressure is 0.30Mpa
