This electric furnace is mainly used for aging heat treatment after solution treatment of aluminum alloy castings. It can also be used for heat treatment of wires. The purpose is to reduce the stress concentration of the aluminum alloy material and reduce the deformation of the aluminum alloy material.

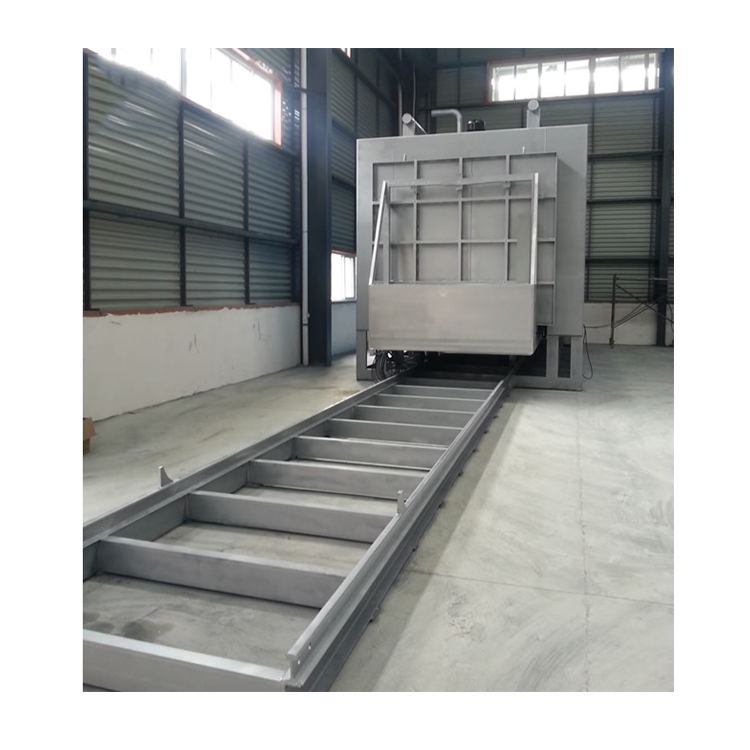

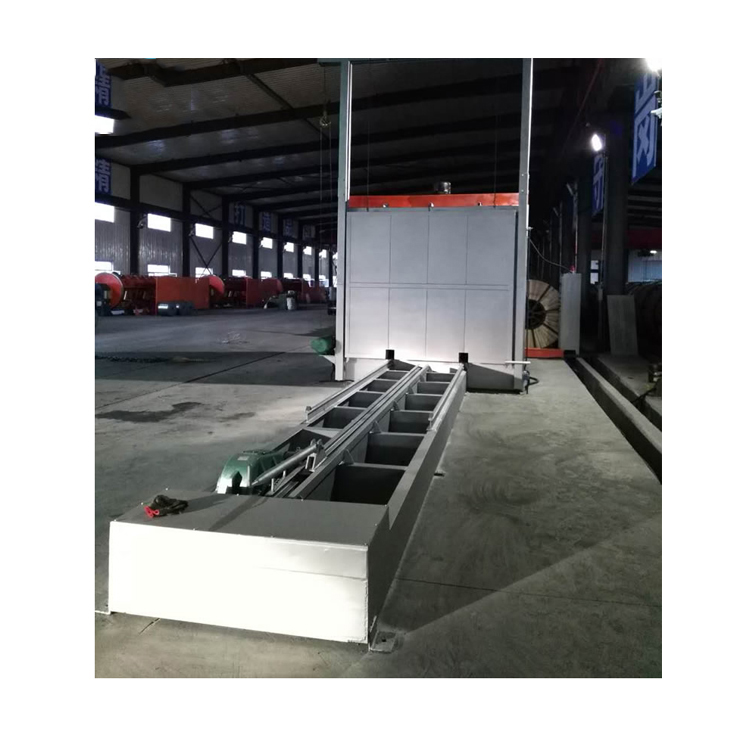

This electric furnace is composed of furnace body, heating system, control system and other parts. The maximum design temperature is 300℃. The furnace lining adopts full fiber structure to improve the heat preservation performance. At the same time, it is equipped with a hot air circulation device to improve the uniformity of furnace temperature. , The loading and unloading of workpieces is convenient, and it is an ideal supporting equipment for manufacturers of aluminum alloy products.
| Model | Power(KW) | Voltage | Max Temperature | Effective heating zone size(mm) |
| DM-AAAF20 | 20 | 380V50HZ | 300℃ | 800*800*1000(L*W*H) |
| DM-AAAF30 | 30 | 380V50HZ | 300℃ | 1000*1000*1200(L*W*H) |
| DM-AAAF35 | 35 | 380V50HZ | 300℃ | 1200*1200*1400(L*W*H) |
| DM-AAAF40 | 40 | 380V50HZ | 300℃ | 1400*1400*1600(L*W*H) |
| DM-AAAF50 | 50 | 380V50HZ | 300℃ | 1800*1500*1500(L*W*H) |
| DM-AAAF60 | 60 | 380V50HZ | 300℃ | 3200*1800*1200(L*W*H) |
| DM-AAAF150 | 150 | 380V50HZ | 300℃ | 4200*2000*2000(L*W*H) |
| DM-AAAF260 | 260 | 380V50HZ | 300℃ | 6200*2500*2000(L*W*H) |
| Can Be Customized | ||||
